1
Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 Factory 1100 E5 Superpole ABS
5
Parts Catalog
SWINGARM
6
Parts Diagram
Parts Catalog
STAND
by
FRONT FENDER - LOWER FAIRING

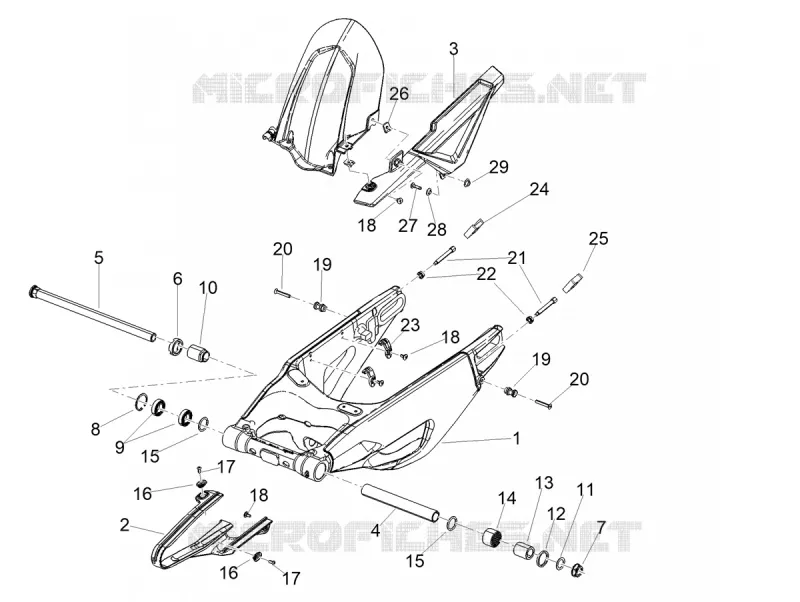

SWINGARM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
1
Bras oscillant fini
2B006712
$1 630,22 Unit Price incl. VAT
2
Patin de chaîne
2B006921
$16,93 Unit Price incl. VAT
3
Carter chaîne
2B006923
$20,65 Unit Price incl. VAT
4
Internal spacer
AP8121570
$18,12 Unit Price incl. VAT
5
Rear swing arm pin
858707
$174,10 Unit Price incl. VAT
6
Swing arm ring nut
648707
$3,78 Unit Price incl. VAT
7
Rear wheel spindle nut
648708
Not Available
8
Inside circlip d37
AP8121204
$3,65 Unit Price incl. VAT
9
Ball bearing 61904-2RS1
890002
$23,76 Unit Price incl. VAT
10
Adjustment bush
858708
$30,21 Unit Price incl. VAT
11
Wheel pin washer
AP8125687
$0,42 Unit Price incl. VAT
12
Gasket ring
AP8144005
$8,01 Unit Price incl. VAT
13
Rear int.sw.arm piv.bush
858936
$9,84 Unit Price incl. VAT
14
Roller cage
AP8110078
$11,34 Unit Price incl. VAT
15
O-ring 134
AP8144048
$3,65 Unit Price incl. VAT
16
Cup for shoe
AP8234020
$2,74 Unit Price incl. VAT
17
Hex socket screw
AP8152174
$3,65 Unit Price incl. VAT
18
Hex socket screw M5x9
AP8150500
$1,53 Unit Price incl. VAT
19
Maintenance
AP8148824
$5,38 Unit Price incl. VAT
20
Screw M6x40
AP8150468
$3,65 Unit Price incl. VAT
21
Chain tens.adjuster screw
2B001920
$6,60 Unit Price incl. VAT
22
Nut M6
2B004511
$0,34 Unit Price incl. VAT
23
Passe-câble
2B006935
$1,43 Unit Price incl. VAT
24
RH chain guide plate
AP8144444
$22,29 Unit Price incl. VAT
25
LH chain guide plate
AP8144443
$19,31 Unit Price incl. VAT
26
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
27
Vis TBEI pré-enduite M5x20
2B003307
$3,65 Unit Price incl. VAT
28
Bush
AP8121032
$0,59 Unit Price incl. VAT
29
T bush
AP8221349
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
