1
Engine displacement
1100
2
Model
TUONO
3
Year
2023
4
Trim
Tuono V4 Factory 1100 E5 Superpole ABS
5
Parts Catalog

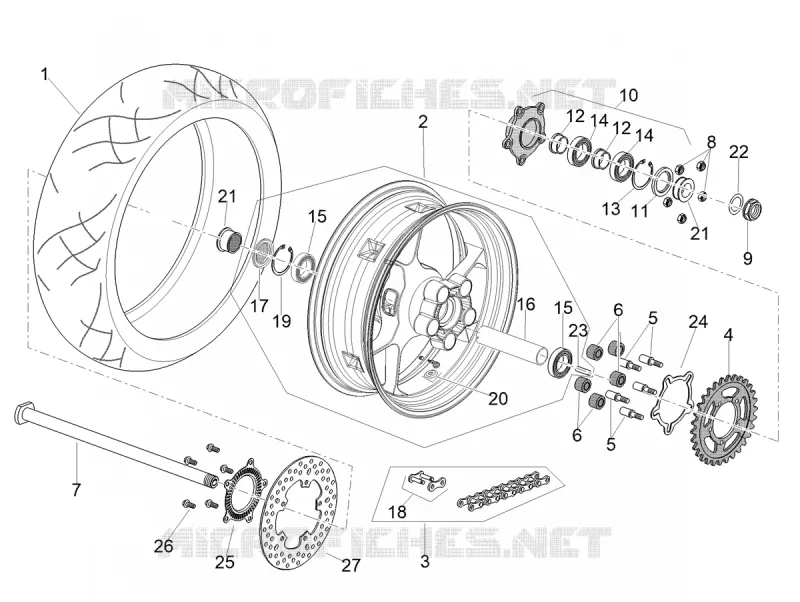

REAR WHEEL
6
Parts Diagram
Parts Catalog
Front wheel
by
FRONT FORK OHLINS
REAR WHEEL
1
2
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
27
1
Pneu arrière 200/55 R17 M/C TL (78W)
2B006863
$1 027,17 Unit Price incl. VAT
2
Rear wheel, red 6.00X17
2B002118
$1 680,75 Unit Price incl. VAT
2
Rear wheel, black 6.00X17
898255
$610,90 Unit Price incl. VAT
3
Chain cpl conn.link
896358
$206,19 Unit Price incl. VAT
4
Chain ring Z=42
CM224903
$120,49 Unit Price incl. VAT
5
cushion
2B002611
$9,41 Unit Price incl. VAT
6
Flexible coupling rubber
B043317
$8,65 Unit Price incl. VAT
7
Rear wheel spindle
858731
Not Available
8
DAX nut M10x1,25
2B002634
$6,12 Unit Price incl. VAT
9
Wheel spindle nut M25x1,5
AP8152324
$7,30 Unit Price incl. VAT
10
Crown holder cpl.
AP8125730
Not Available
11
Gasket ring 38x55x7
AP8121213
$8,01 Unit Price incl. VAT
12
Spring drive spacer
AP8125732
$29,76 Unit Price incl. VAT
13
Inside circlip d55
AP8121212
$7,81 Unit Price incl. VAT
14
Bearing 30x55x13
AP8110081
$16,34 Unit Price incl. VAT
15
Bearing 6205-2rs1 25x52x15
AP8110093
$15,98 Unit Price incl. VAT
16
Internal spacer
AP8128170
$36,58 Unit Price incl. VAT
17
Gasket ring 38x52x7
AP8125838
$8,01 Unit Price incl. VAT
18
Connecting link
859754
$8,40 Unit Price incl. VAT
19
Snap ring d52
AP8125839
$8,01 Unit Price incl. VAT
20
Tubeless tyre valve
AP8101744
$6,30 Unit Price incl. VAT
21
Rear wheel spacer
AP8121592
$15,31 Unit Price incl. VAT
22
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
23
Pin 10x20
AP8150463
$3,65 Unit Price incl. VAT
24
Flange
2B003043
$86,99 Unit Price incl. VAT
25
Roue phonique ABS
2B008446
$14,28 Unit Price incl. VAT
26
Screw w/ flange M8x20
2B002416
$0,51 Unit Price incl. VAT
27
Brake disc
85248R
$109,35 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
