1
Engine displacement
650
2
Model
PEGASO
3
Year
1992
4
Trim
PEGASO
5

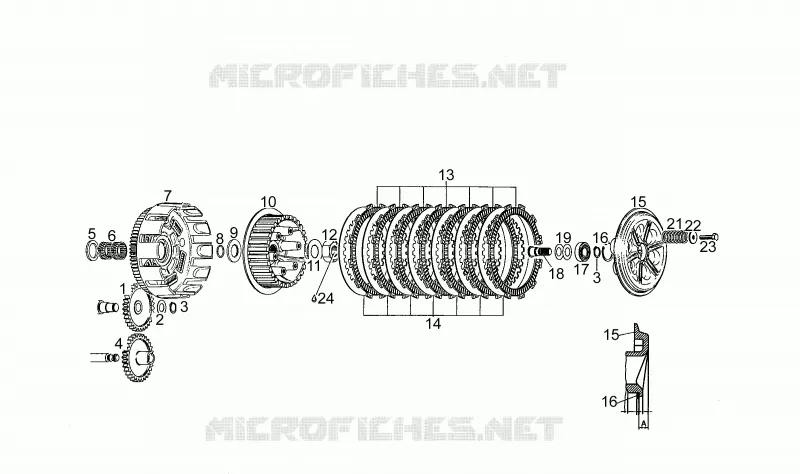

Parts Catalog
Clutch N>S
6
Parts Diagram
Parts Catalog
Front fork T
by
Handlebar - Controls
Clutch N>S
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
19
21
22
23
24
1
Idle gear Z=31
AP0235272
Not Available
2
Thrust washer
AP0227400
Not Available
3
Circlip d14
AP0945650
Not Available
4
Gear Z=31
AP0235277
Not Available
5
Thrust washer
AP0227607
Not Available
6
Roller cage 25x29x13
AP0932930
Not Available
7
Clutch drum
AP0294400
Not Available
8
O-ring 18x1,5
AP0230400
$0,27 Unit Price incl. VAT
8
O-ring 3771
AP0250890
$8,01 Unit Price incl. VAT
9
Thrust washer 20/38/3
AP0244950
Not Available
10
Clutch hub
AP0259110
Not Available
10
Clutch hub
AP0259115
Not Available
11
Washer
AP0245325
Not Available
12
Nut m18x1,25
AP0242607
Not Available
13
Lined clutch disc 3,5mm
AP0259210
$29,06 Unit Price incl. VAT
14
Steel clutch disc 1,5 mm
AP0259260
Not Available
15
Springholder plate A=75 mm
AP0259120
Not Available
15
Springholder plate
AP0259122
Not Available
16
Seeger A=7,5 mm
AP0245420
Not Available
17
Bearing 15x32x9
AP0232262
$23,53 Unit Price incl. VAT
18
Rack shaft
AP0259202
Not Available
19
Belleville spring
AP0239060
Not Available
21
Clutch spring
AP0239162
$7,94 Unit Price incl. VAT
22
Washer d6,5
AP0244020
$3,65 Unit Price incl. VAT
23
Hex screw
AP0240036
Not Available
24
Loctite (violet) 221 10cc.
AP0899785
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
