Engine displacement
650
2
Model
PEGASO
3
Year
1992
4
Trim
PEGASO
5
Parts Catalog
Gear box N>S
6
Parts Diagram
Parts Catalog
Gear box T
by
Special tools N>S
Gear box N>S
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
42
43
44
45
45
46
46
47
1
Primary gear shaft Z=12
AP0237110
Not Available
2
Gear 4 v.ta' Z=22
AP0234719
Not Available
2
Gear 4 v.ta' Z=22
AP0234715
Not Available
3
Thrust washer
AP0227820
Not Available
4
Circlip d25
AP0445300
Not Available
5
Gear Z=16
AP0634335
Not Available
5
Gear Z=16
AP0234690
Not Available
6
Thrust washer 21,2/27,5/1
AP0227445
Not Available
7
Roller cage 21x25x13
AP0232805
Not Available
8
5th pinion gear Z=24
AP0234720
Not Available
9
2nd pinion gear Z=16
AP0234670
Not Available
10
Driven shaft
AP0237070
Not Available
11
Roller cage 22x26x10
AP0232520
Not Available
12
Roller cage 22x26x13
AP0232530
Not Available
13
Gear Z=28
AP0234680
Not Available
14
Thrust washer
AP0227860
Not Available
15
Gear Z=21
AP0234740
Not Available
16
Thrust washer
AP0244050
Not Available
17
3rd wheel gear Z=21
AP0234700
Not Available
18
Thrust washer 22,5x31,4x2,9
AP0227495
Not Available
19
Gear 4 v.ta' Z=23
AP0234730
Not Available
20
Thrust washer
AP0927470
Not Available
21
Gear 1 v.tà Z=33
AP0234660
Not Available
22
Thrust washer 17,2/30/1
AP0227430
$4,82 Unit Price incl. VAT
23
Washer
AP0244200
Not Available
24
O-ring 20-3,5 mm
AP0250430
Not Available
25
Washer
AP0227930
Not Available
26
screw M8x30
AP0940485
Not Available
27
Pinion
AP0236155
Not Available
27
Pinion Z=17
AP0236157
Not Available
27
Pinion Z=16
AP0236156
Not Available
28
Index spring
AP0239090
Not Available
29
Washer 6,4
AP0244211
Not Available
30
Index assy. lever
AP0248995
Not Available
31
Bush
AP0227710
Not Available
32
Screw w/ flange
AP0240580
Not Available
33
Spring
AP0239082
Not Available
34
Gearshift shaft+pawl assy
AP0237155
Not Available
35
Spring
AP0239070
Not Available
36
Shift cam
AP0258105
Not Available
37
Fork 4-5 speed
AP0258034
Not Available
37
Fork 4-5 v.tà
AP0258030
Not Available
38
Fork 2 speed
AP0258023
Not Available
38
Fork 2 v.tà
AP0258020
Not Available
39
Fork 1-3 v.tà
AP0258010
Not Available
39
Fork 1-3 speed
AP0258013
Not Available
40
Fork shaft
AP0258782
Not Available
41
Circlip d14
AP0945650
Not Available
42
Thrust washer
AP0227400
Not Available
43
Gear lever
AP0248312
Not Available
44
Hex socket screw M6x20
AP0241930
$3,65 Unit Price incl. VAT
45
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
46
Loctite (violet) 221 10cc.
AP0899785
Not Available
47
Gear box assy
AP0281191
Not Available

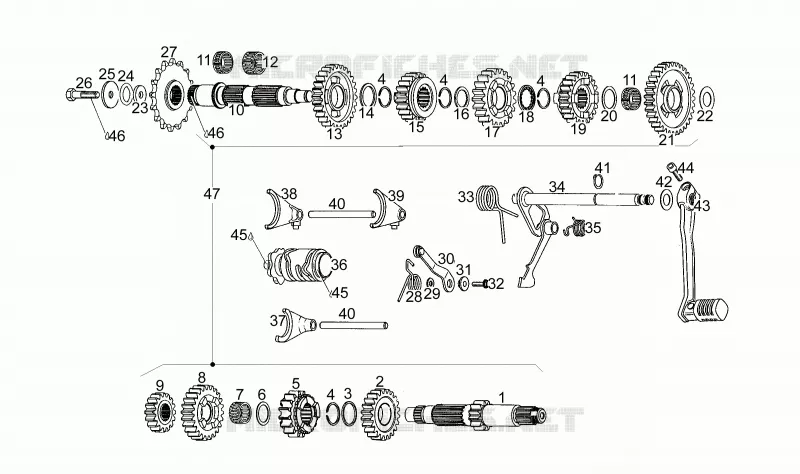

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
