1
Engine displacement
650
2
Model
PEGASO
3
Year
1995
4
Trim
PEGASO
5
Parts Catalog

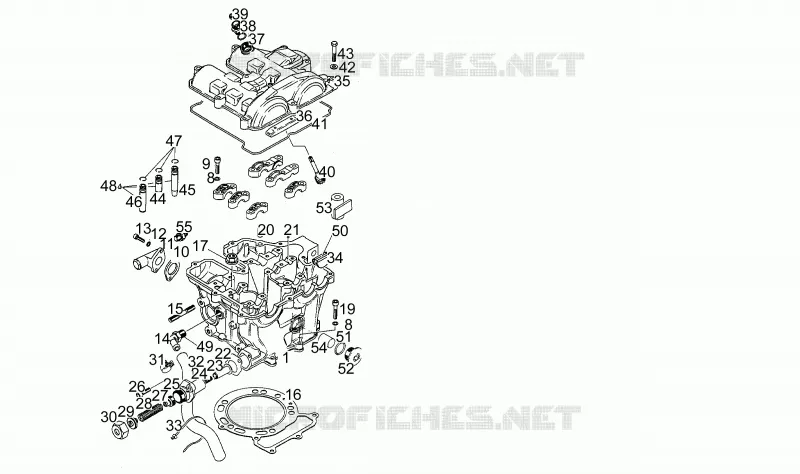

Cylinder - Head - Piston N>S
6
Parts Diagram
Parts Catalog
Cdi magneto assy T
by
Oil pump T
Cylinder - Head - Piston N>S
1
8
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
1
Cylinder head
AP0223529
Not Available
8
Break washer a6
AP0945751
Not Available
9
Hex socket screw M6x25
AP0840861
$3,65 Unit Price incl. VAT
10
Gasket
AP0250025
Not Available
11
Angular union
AP0222226
Not Available
12
Break washer a5
AP0945750
Not Available
13
Hex socket screw
AP0240181
Not Available
14
Angular union
AP0922245
Not Available
15
Stud bolt
AP0240360
Not Available
16
Gasket
AP0230602
Not Available
17
Nut
AP0242851
$3,65 Unit Price incl. VAT
19
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
20
Pin 8x16
AP0229290
Not Available
21
Pin 3x9,8
AP0232990
Not Available
22
Gasket
AP0250980
Not Available
23
Bush
AP0236100
Not Available
24
Spring
AP0239310
Not Available
25
Chain tensioner housing
AP0236081
Not Available
26
Hex socket screw
AP0840401
Not Available
27
Adjuster screw int. m18x2,5
AP0229330
Not Available
28
Spring
AP0239180
$14,89 Unit Price incl. VAT
29
Adjuster screw ext.
AP0229320
Not Available
30
Nut m24x1
AP0242840
Not Available
31
Hose clamp d16,5
AP0251010
Not Available
32
pipe 240 mm
AP0260141
Not Available
33
Hose clamp
AP0251920
Not Available
34
Cover
AP0260961
Not Available
35
Valves cover
AP0210674
Not Available
36
Upper chain guide plate
AP0236130
$21,33 Unit Price incl. VAT
37
O-ring 12-1,5 mm
AP0430600
Not Available
38
Joint m16x1/m16x1,5
AP0241070
Not Available
39
Oil seal 6x11x3/4,5
AP0930500
Not Available
40
Tachometer shaft
AP0237080
Not Available
41
O-ring
AP0230540
Not Available
42
Washer 6,4
AP0244211
Not Available
43
Hex screw
AP0941121
$4,82 Unit Price incl. VAT
44
Intake valve guide
AP0253591
Not Available
45
Intake valve guide
AP0253596
Not Available
46
Exhaust valve guide
AP0253581
Not Available
47
Circlip 11x1
AP0245710
Not Available
48
Molykote G-N 50gr.
AP0297433
Not Available
49
Loctite (orange) 574
AP0899784
Not Available
50
Silastic 732RTV 100gr.
AP0297385
Not Available
51
O-ring 23,3x2,4
AP0430782
$5,90 Unit Price incl. VAT
52
Cover m24x1
AP0241370
Not Available
53
Rubber spacer
AP0247955
Not Available
54
Rubber spacer
AP0260310
Not Available
55
Temp. Sensor
AP0222420
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
