1
Engine displacement
650
2
Model
PEGASO
3
Year
1995
4
Trim
PEGASO
5
Parts Catalog
Front fork R/S
6
Parts Diagram
Parts Catalog
Electrical system
by
Exhaust unit
Front fork R/S
1
4
4
8
9
9
9
11
13
16
17
17
18
18
20
20
22
22
23
28
28
30
31
40
40
52
52
56
59
59
65
68
85
86
86
87
89
90
117
118
118
139
140
141
142
1
Upper U-bolt
AP8123185
Not Available
1
U-bolt
AP8123604
$14,89 Unit Price incl. VAT
4
O-ring
AP8123346
$3,65 Unit Price incl. VAT
4
O-ring 33x2,62
AP8123417
Not Available
8
Fork upper plate
AP8123412
Not Available
8
Fork upper plate 185/25/50
AP8123603
Not Available
9
Screw M8x30
AP8203570
Not Available
11
Flanged nut
AP8123243
$10,95 Unit Price incl. VAT
13
Fork lower ring nut
AP8203588
$10,00 Unit Price incl. VAT
16
Stem base 185/25/54
AP8123611
Not Available
16
Stem base
AP8123502
Not Available
17
Plug cpl.
AP8123348
$56,11 Unit Price incl. VAT
18
Spring D4,8x398
AP8123606
Not Available
18
Spring
AP8123503
Not Available
20
Dust cover + spring
AP8123777
Not Available
22
Gasket ring
AP8103235
Not Available
23
Stop ring
AP8123199
$3,65 Unit Price incl. VAT
28
Preload tube 31x2,5x215
AP8123607
Not Available
28
Preload tube
AP8123507
Not Available
30
Hub+RH fork leg
AP8123741
Not Available
30
Hub+RH fork leg
AP8123614
Not Available
31
Hub+LH fork leg
AP8123742
Not Available
31
Hub+LH fork leg
AP8123615
Not Available
40
Screw M10x30
AP8123216
$3,65 Unit Price incl. VAT
52
Gasket
AP8123436
Not Available
56
Sliding bush
AP8123203
Not Available
59
Ring spring
AP8123357
$12,36 Unit Price incl. VAT
65
Screw M6x20
AP8123610
Not Available
68
Sleeve cpl.
AP8123508
Not Available
68
Sleeve
AP8123613
Not Available
85
Lower U-bolt
AP8123509
Not Available
85
Lower U-bolt
AP8123605
$29,06 Unit Price incl. VAT
86
Silent-block
AP8103504
$6,30 Unit Price incl. VAT
87
Pipe
AP8123510
$10,00 Unit Price incl. VAT
89
Cup
AP8123511
Not Available
90
Nut
AP8123512
$3,65 Unit Price incl. VAT
117
screw
AP8123513
$3,65 Unit Price incl. VAT
118
Half ring
AP8123441
Not Available
139
Cup
AP8123360
Not Available
140
Front fork
AP8123376
Not Available
140
Front fork
AP8123634
Not Available
141
Plunger, complete
AP8123612
Not Available
142
Spring guide tube
AP8123608
Not Available

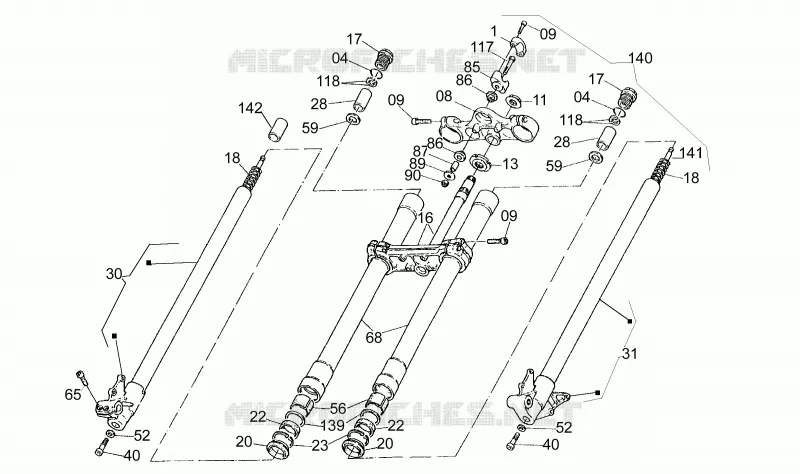

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
