Parts Catalog
Flywheel-Syarter motor
6

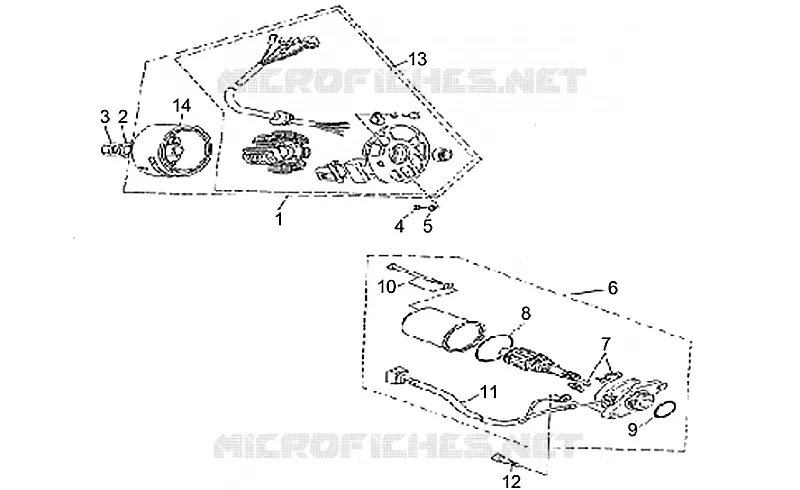

Parts Diagram
Parts Catalog
Drive shaft
by
Flywheel-Syarter motor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Generator
AP8910173
Not Available
2
Plain washer 10x22x2
AP8910387
Not Available
3
Flanged nut
AP8910376
Not Available
4
Hex socket screw
AP8910331
Not Available
5
Plain washer 6x13x1
AP8910381
Not Available
6
Starter motor cpl.
AP8910177
Not Available
6
Starter motor cpl.
AP8910176
Not Available
7
Brush revision set
AP8910178
Not Available
7
Brush revision set
AP8910179
Not Available
8
O-ring
AP8910350
Not Available
8
O-ring
AP8910349
Not Available
9
O-ring
AP8910345
Not Available
9
O-ring
AP8910346
Not Available
10
Screw with washer
AP8910303
Not Available
10
Screw with washer
AP8910302
Not Available
11
Starter motor wiring harness
AP8910180
Not Available
11
Wiring
AP8910181
Not Available
12
Hex socket screw M6x20
AP8910332
Not Available
13
Stator cpl.
AP8910175
Not Available
14
Cdi magneto assy
AP8910174
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
