Parts Catalog
Speed variator w/ clutch
6
Parts Diagram
Parts Catalog
Kick starter
by
Drive shaft
Speed variator w/ clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
28
29
30
30
31
32
33
34
1
Primary drive gear
AP8910153
Not Available
1
Drive shaft
AP8910154
Not Available
2
Plain washer 6x19x1
AP8910383
Not Available
3
Hex socket screw M6x10
AP8910329
Not Available
4
Stop ring S-17
AP8910419
Not Available
5
Bearing 6003
AP8910446
Not Available
6
Oil seal 17x28x5.5
AP8910470
Not Available
7
Centrifugal clutch assy
AP8910116
Not Available
7
Centrifugal clutch assy
AP8910117
Not Available
8
Nut
AP8910370
Not Available
9
Bearing 638ZZ
AP8910452
Not Available
10
O-ring 6.5x3
AP8910340
Not Available
11
Variator
AP8910123
Not Available
11
Variator
AP8910122
Not Available
12
Vee-Belt
AP8910142
Not Available
12
Vee-Belt
AP8910141
Not Available
13
Toothed start clutch cup
AP8910133
Not Available
13
Toothed start clutch cup
AP8910132
Not Available
14
Spring washer 10.2x24x2.5
AP8910134
Not Available
15
Flanged nut
AP8910376
Not Available
16
Clutch
AP8910137
Not Available
16
Clutch
AP8910138
Not Available
17
Brake shoes return spring
AP8910140
Not Available
17
Brake shoes return spring
AP8910139
Not Available
18
Sec. fixed sheave, complete
AP8910144
Not Available
18
Sec. fixed sheave, complete
AP8910143
Not Available
19
Sec. sliding sheave, complete
AP8910145
Not Available
19
Sec. sliding sheave, complete
AP8910146
Not Available
20
Oil seal 33x39x4
AP8910476
Not Available
21
O-ring 36x2
AP8910347
Not Available
21
O-ring 36x2
AP8910348
Not Available
22
Guide pin
AP8910147
Not Available
22
Guide pin
AP8910148
Not Available
23
Sec. sheave spring
AP8910150
Not Available
23
Sec. sheave spring
AP8910149
Not Available
24
Variator spring cup
AP8910152
Not Available
24
Variator spring cup
AP8910151
Not Available
25
Nut
AP8910306
Not Available
25
Nut
AP8910307
Not Available
26
Clutch housing, complete
AP8910119
Not Available
26
Clutch housing, complete
AP8910118
Not Available
27
Pulley assy., driving
AP8910124
Not Available
27
Pulley assy., driving
AP8910125
Not Available
28
Pin roller
AP8910126
Not Available
28
Pin roller
AP8910127
Not Available
29
Ramp plate
AP8910128
Not Available
29
Ramp plate
AP8910129
Not Available
30
Slider
AP8910130
Not Available
30
Slider
AP8910131
Not Available
31
Bush 13x18x38
AP8910466
Not Available
31
Bush 16x21x37
AP8910468
Not Available
32
Washer 13x18x1
AP8910391
Not Available
33
Fixed pulley
AP8910121
Not Available
33
Fixed pulley
AP8910120
Not Available
34
Front pulley drive plate
AP8910135
Not Available
34
Front pulley drive plate
AP8910136
Not Available

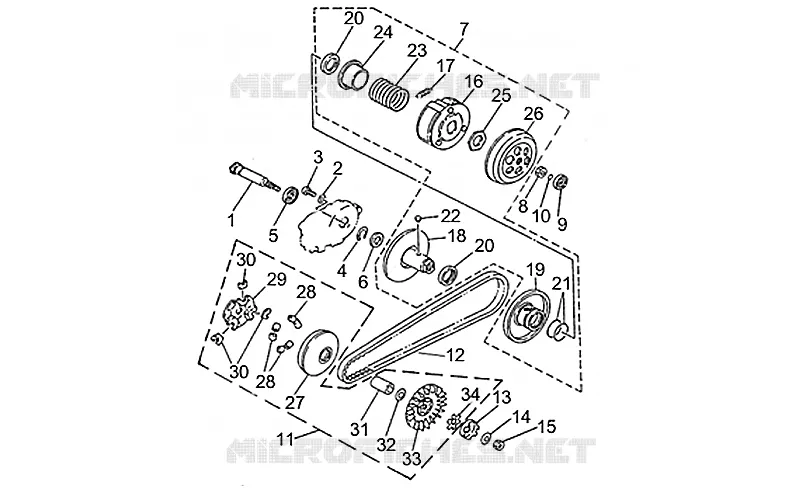

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
