Engine displacement
50
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Cooling unit
by
Carburettor
Oil pump
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
16
17
17
1
Oil pump mix cpl.L=540 mm
AP8910042
Not Available
1
Oil pump mix cpl.L=540 mm
AP8910041
Not Available
2
Screw w/ flange
AP8910588
Not Available
3
Oil pump drive gear
AP8910045
Not Available
4
Pin NR3x11.8
AP8910458
Not Available
5
Stop ring S-19
AP8910420
Not Available
6
Washer 19x26x0.3
AP8910046
Not Available
7
Self-tap screw M4x8
AP8910358
Not Available
8
Washer 4x8.5x0.5
AP8910378
Not Available
9
O-ring
AP8910343
Not Available
9
O-ring
AP8910344
Not Available
10
Oil pump gear
AP8910044
Not Available
10
Oil pump gear
AP8910043
Not Available
11
Pin 3x13
AP8910459
Not Available
12
O-ring ETW-7
AP8910417
Not Available
13
Oil pipe
AP8910410
Not Available
14
Clip 8x0,8
AP8910414
Not Available
15
Oil pipe 2x5
AP8910408
Not Available
16
Clip
AP8910413
Not Available
17
Pipe cover
AP8910048
Not Available

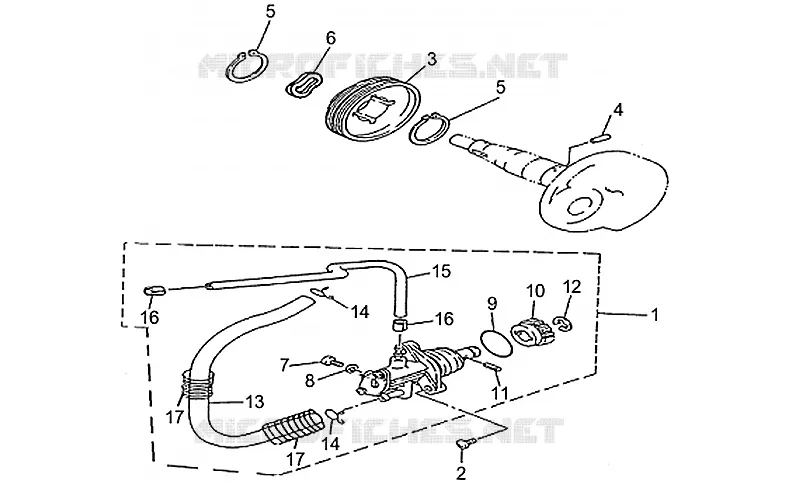

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
