1
Engine displacement
50
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Speed variator w/ clutch
by
Flywheel-Syarter motor

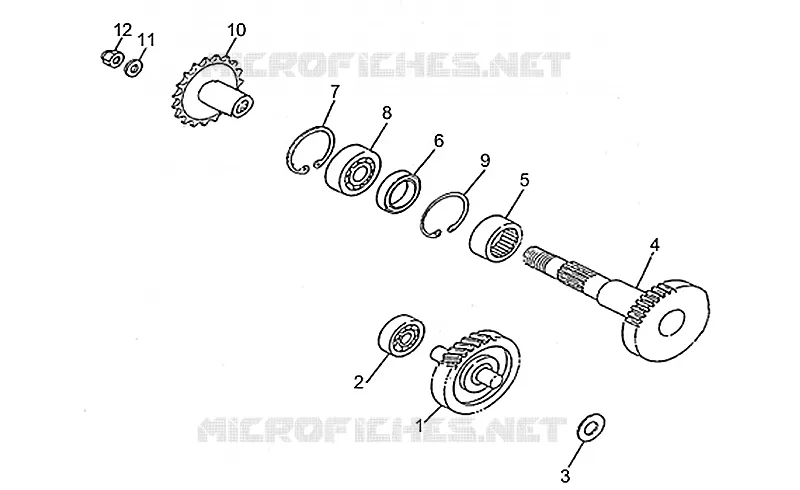

Drive shaft
1
2
3
4
5
6
7
8
9
10
11
12
1
Drive shaft
AP8910155
Not Available
1
Drive shaft
AP8910156
Not Available
2
Bearing 6201
AP8910450
Not Available
3
Plain washer 12x22x1
AP8910388
Not Available
4
Drive shaft assy
AP8910159
Not Available
4
Drive shaft assy
AP8910160
Not Available
5
Bearing 2515
AP8910455
Not Available
6
Oil seal 25x35x6
AP8910475
Not Available
7
Circlip R-42
AP8910422
Not Available
8
Bearing 6004U
AP8910448
Not Available
9
Circlip R-32
AP8910421
Not Available
10
Chain ring 19T/428
AP8910161
Not Available
11
Plain washer 14x26x2
AP8910393
Not Available
12
Nut M14
AP8910317
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
