Engine displacement
50
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Cylinder head
by
Cooling unit
Drive shaft
1
2
2
3
4
5
6
7
8
9
9
10
11
12
1
Drive shaft
AP8910026
Not Available
1
Drive shaft
AP8910027
Not Available
2
Bearing 6204C3
AP8910451
Not Available
3
Oil seal 20x42x8
AP8910473
Not Available
4
Oil seal 20x30x6
AP8910472
Not Available
5
Spacer 5.1x20x12
AP8910037
Not Available
5
Spacer 6x21x15.5
AP8910036
Not Available
6
Piston
AP8910031
Not Available
6
Piston
AP8910030
Not Available
7
Piston pin
AP8910032
Not Available
7
Piston pin
AP8910033
Not Available
8
Piston ring set
AP8910029
Not Available
8
Piston ring set
AP8910028
Not Available
9
Stop ring
AP8910035
Not Available
9
Stop ring
AP8910034
Not Available
10
Pin cage 10x14x12.5
AP8910453
Not Available
10
Pin cage 12x15x16
AP8910454
Not Available
11
Plain washer 13x19x0.5
AP8910392
Not Available
11
Plain washer 16x24x0.5
AP8910396
Not Available
12
Transmission key 3x13
AP8910323
Not Available

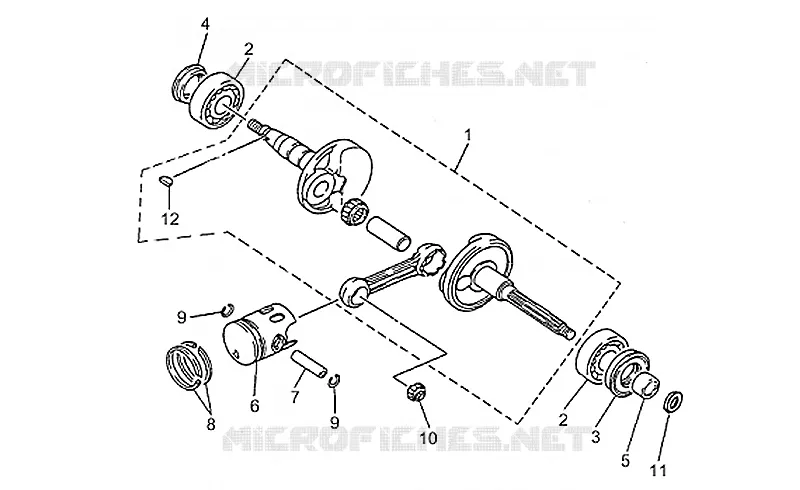

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
