1
Engine displacement
50
2
Model
QUASAR
3
Year
2003
4
Trim
Quasar
5

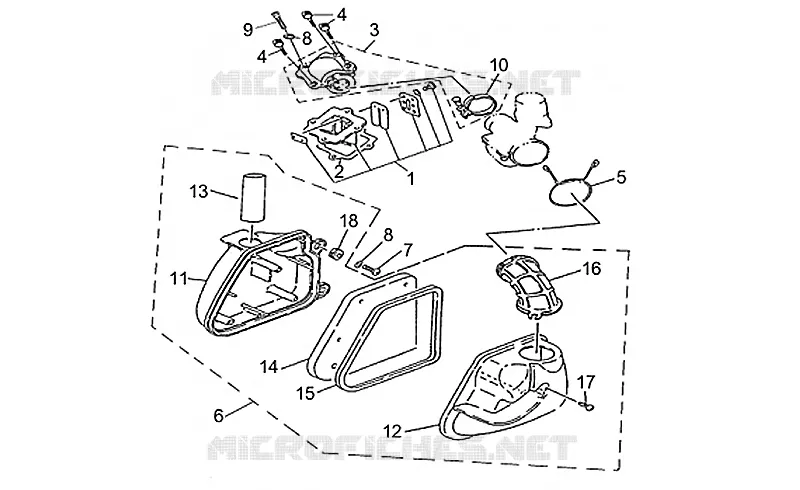

Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
by
Exhaust unit
Air box
18
17
16
15
14
13
12
11
10
9
8
8
7
6
5
4
4
3
2
1
1
Reed valve assy
AP8910039
Not Available
1
Reed valve assy
AP8910038
Not Available
2
Gasket
AP8910088
Not Available
3
Intake manifold
AP8910087
Not Available
4
Hex socket screw
AP8910428
Not Available
5
Clip 40x2.3
AP8910416
Not Available
6
Air box cpl.
AP8910089
Not Available
7
Hex socket screw M6x20
AP8910332
Not Available
8
Plain washer 6x13x1
AP8910381
Not Available
9
Shear rivet
AP8910580
Not Available
10
Hose clamp
AP8910040
Not Available
11
Filter housing body
AP8910091
Not Available
12
Filter housing cover
AP8910092
Not Available
13
Intake hose
AP8910096
Not Available
14
Air filter
AP8910090
Not Available
15
Air filter housing seal
AP8910093
Not Available
16
Intake hose
AP8910097
Not Available
17
screw 5x26
AP8910366
Not Available
18
Rubber spacer
AP8910469
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
