Engine displacement
50
2
Model
RALLY
3
Year
1997
4
Trim
Rally H2O
5
Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Central stand - Connecting rod
by
Front fork II
Front fork I
1
2
3
4
5
5
6
7
7
8
8
9
10
11
12
13
14
15
16
1
Complete fork - blue ring
AP8203696
Not Available
1
Fourche cpl-anneau jaune;
AP8203751
$576,22 Unit Price incl. VAT
2
RH hub cover
AP8226420
Not Available
2
RH hub cover
AP8226345
Not Available
2
RH hub cover
AP8226492
Not Available
3
LH hub cover
AP8226346
Not Available
3
LH hub cover
AP8226493
Not Available
3
LH hub cover
AP8226421
Not Available
4
Stem base - yellow ring
AP8203802
Not Available
4
Stem base - blue ring
AP8203738
Not Available
5
Rubber spacer
AP8203740
Not Available
6
Cup
AP8203684
Not Available
7
Sleeve plug
AP8203679
Not Available
8
Spring D3,6x182
AP8203677
Not Available
9
Bumper
AP8203739
Not Available
10
Hub+RH fork leg
AP8203686
Not Available
11
Hub+LH fork leg
AP8203687
Not Available
12
Cap nut
AP8203689
Not Available
13
Bush
AP8203690
Not Available
14
Plunger, complete
AP8203716
Not Available
15
Preload tube 24x3x184
AP8203678
Not Available
16
screw
AP8203571
Not Available

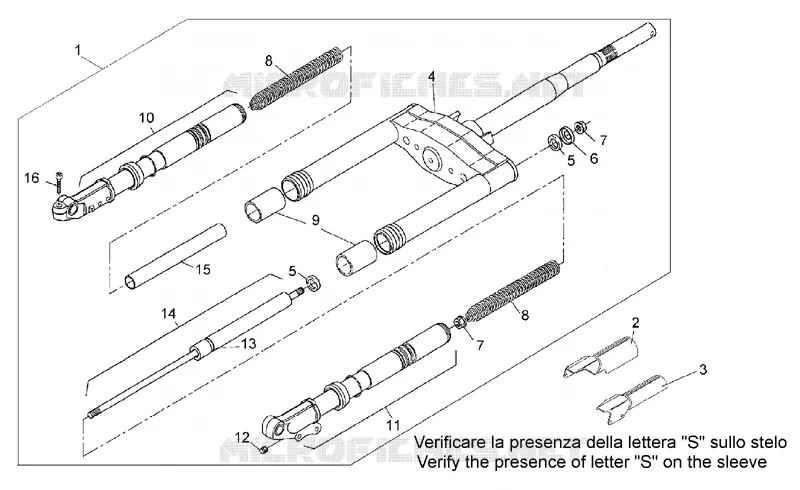

Find the detailed Front fork I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
