Parts Catalog
Cylinder head I
6
Parts Diagram
Parts Catalog
Central crank-case set
by
Cylinder head II
Cylinder head I
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
1
Flanged nut M7x1
AP8206491
$5,20 Unit Price incl. VAT
2
Cylinder head
AP8206568
Not Available
2
Cylinder head
AP8206772
Not Available
3
Inner gasket head D2,26
AP8206588
$22,83 Unit Price incl. VAT
4
Outer gasket head D2,26
AP8206587
Not Available
5
Piston ring set D40
AP8206120
Not Available
5
Piston ring set D40,5
AP8206220
Not Available
6
Stop ring D11,8
AP8206861
Not Available
7
Piston pin D10x33
AP8206174
Not Available
8
Piston assy D40
AP8206592
Not Available
8
Piston assy D40,5
AP8206593
Not Available
9
Cylinder with piston
AP8206590
Not Available
10
Joint base cylindre
AP8206575
$11,06 Unit Price incl. VAT
11
Stud bolt M7x1x109
AP8206493
Not Available
12
Screw with washer M4x10
AP8502559
Not Available
13
Breather union on head
AP8206579
Not Available
14
Thermostat
AP8206383
$63,50 Unit Price incl. VAT
15
Gasket set
AP8206784
$40,69 Unit Price incl. VAT
16
Bougie NGK BR8HS
AP8206871
$8,10 Unit Price incl. VAT

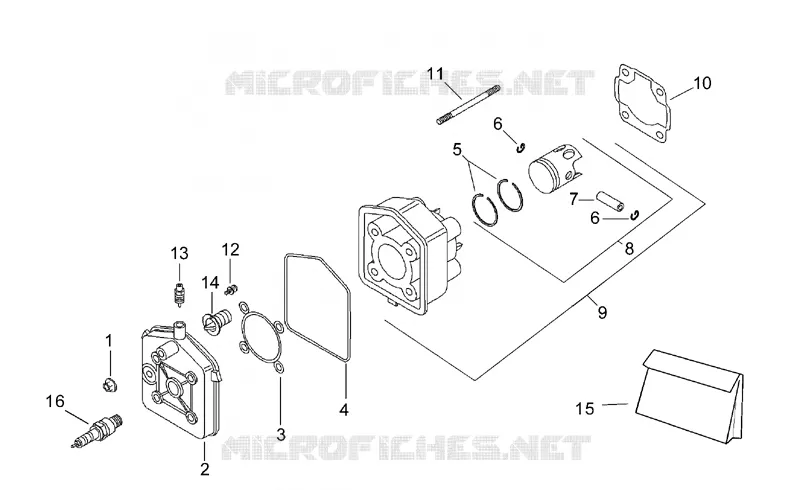

Find the detailed Cylinder head I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
