1
Engine displacement
250
2
Model
RS
3
Year
1999
4
Trim
RS 250
5
Parts Catalog
Saddel supp./Swing arm-Chall.Vers.
6

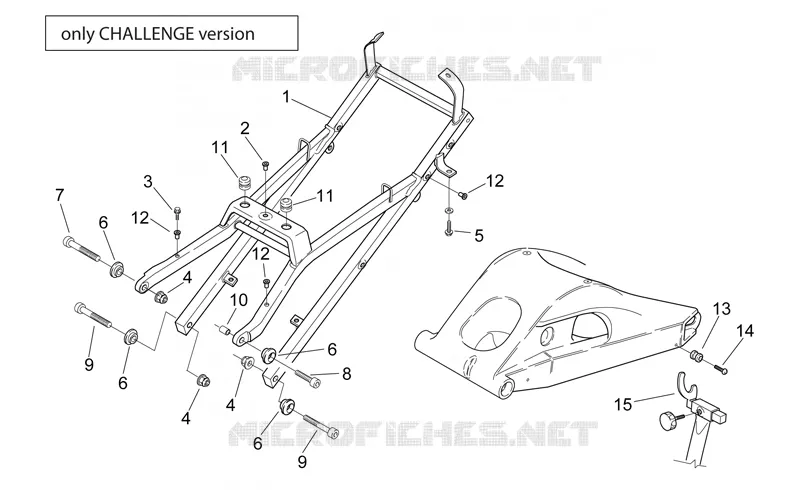

Parts Diagram
Parts Catalog
Decal
by
Body I - Challenge Version
Saddel supp./Swing arm-Chall.Vers.
1
2
3
4
4
4
5
6
6
6
6
7
8
9
9
10
11
11
12
12
12
13
14
15
1
Saddle support
AP8146204
Not Available
2
Hex threaded insert
AP8102902
$3,65 Unit Price incl. VAT
3
Threaded rivet M8
AP8102179
Not Available
4
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
5
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
6
Bush
AP8135735
Not Available
7
Hex socket screw M8x45
AP8150164
$3,65 Unit Price incl. VAT
8
Hex socket screw M8x30
AP8150107
$3,65 Unit Price incl. VAT
9
Hex socket screw M8x50
AP8150277
$0,42 Unit Price incl. VAT
10
Helicoil insert
AP8121291
Not Available
11
Rubber spacer
AP8120311
$5,38 Unit Price incl. VAT
12
Threaded rivet M6
AP8102544
$5,23 Unit Price incl. VAT
13
Rear stand bush
AP8121890
$3,65 Unit Price incl. VAT
14
Hex socket screw M6x30
AP8152128
$0,34 Unit Price incl. VAT
15
Rear stand
AP8146205
$311,72 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
