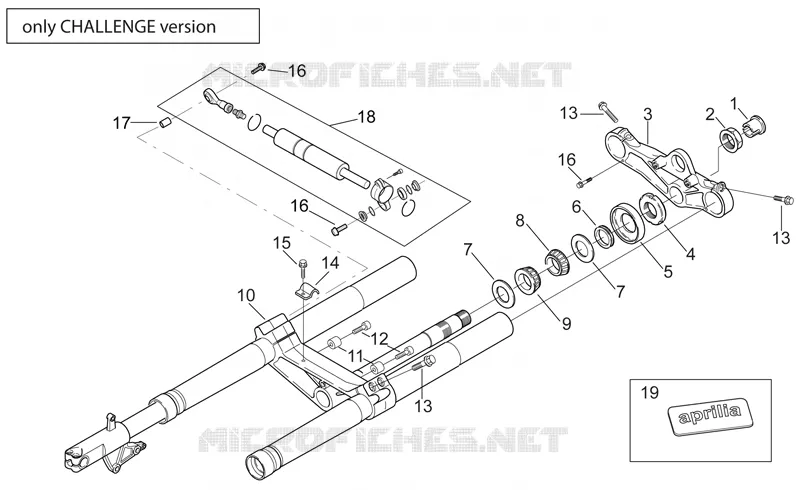

Front fork - Challenge Version
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
13
14
15
16
16
16
17
18
19
1
Plug cover
AP8138403
Not Available
2
Flanged nut
AP8123243
$10,95 Unit Price incl. VAT
3
Fork upper plate
AP8123727
Not Available
4
Ring nut
AP8123734
$8,16 Unit Price incl. VAT
5
Dust cover
AP8120542
Not Available
6
Spacer
AP8101272
$3,65 Unit Price incl. VAT
7
Gasket ring
AP8101106
Not Available
8
Tap.roller bearing
AP8110010
Not Available
9
Roller bearing
AP8110024
$15,98 Unit Price incl. VAT
10
Stem base
AP8123726
Not Available
11
Steering lock bush
AP8121338
$3,65 Unit Price incl. VAT
12
Hex socket screw M8x16
AP8150211
$3,65 Unit Price incl. VAT
13
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
14
Brake hose hanger
AP8134438
Not Available
15
Screw w/ flange M5x12
AP8152272
$0,08 Unit Price incl. VAT
16
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
17
Spacer *
AP8121041
$3,65 Unit Price incl. VAT
18
Steering shock absorber
AP8705009
Not Available
19
"Aprilia" dataplate
AP8157770
$6,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
