Engine displacement
250
2
Model
RS
3
Year
2003
4
Trim
RS 250
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Front body II
by
Central body
Fuel tank
1
2
3
4
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
1
Fuel tank, Ap. black
AP8148998
Not Available
1
Fuel tank, sil. Grey
AP8149889
Not Available
1
Fuel tank, blue
AP8138894
Not Available
1
Fuel tank, n.grey
AP8149014
Not Available
1
Fuel tank, Ap. black
AP8139380
Not Available
1
Fuel tank, silver
AP8168786
Not Available
1
Fuel tank, fumi blue
AP8139965
Not Available
2
Fuel cock
AP8102360
Not Available
3
Fuel filler cap
AP8104386
Not Available
3
Fuel filler cap
AP8102435
Not Available
4
Cap seal
AP8120893
$5,38 Unit Price incl. VAT
5
Float chamber
AP8102526
Not Available
5
Float chamber
AP8102535
$8,91 Unit Price incl. VAT
6
Fuel tank gasket
AP8120894
Not Available
7
Lateral tank rubber
AP8120914
Not Available
8
Tank rubber
AP8120913
Not Available
9
Hex socket screw
AP8152040
$3,65 Unit Price incl. VAT
10
Rubber spacer
AP8102504
$0,70 Unit Price incl. VAT
11
Hose holder union
AP8102503
Not Available
12
O-ring 4093
AP8120869
$3,65 Unit Price incl. VAT
13
Tank front bracket
AP8134322
Not Available
14
Screw w/ flange
AP8152284
$3,65 Unit Price incl. VAT
15
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
16
Rubber spacer *
AP8220192
$6,30 Unit Price incl. VAT
17
Spacer *
AP8121764
$8,01 Unit Price incl. VAT
18
Hex socket screw M5x16
AP8150050
$3,65 Unit Price incl. VAT
19
Hex socket screw
AP8150176
$3,65 Unit Price incl. VAT
20
Hose cock
AP8102525
$10,95 Unit Price incl. VAT

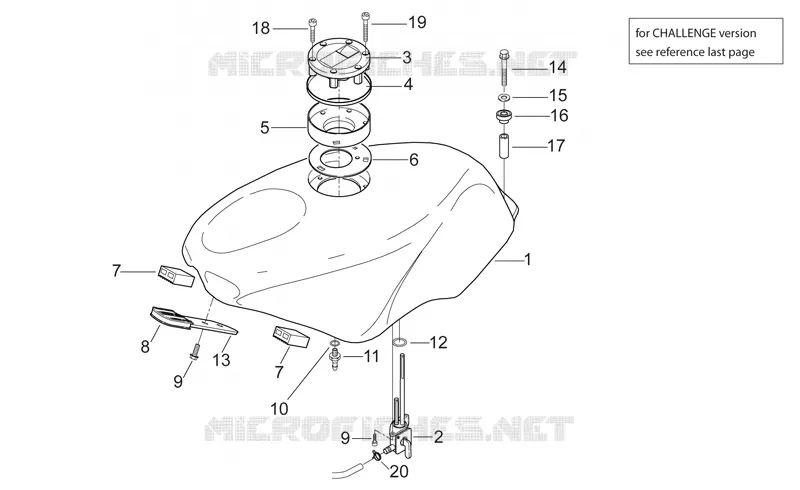

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
