1
Engine displacement
250
2
Model
RS
3
Year
2003
4
Trim
RS 250
5

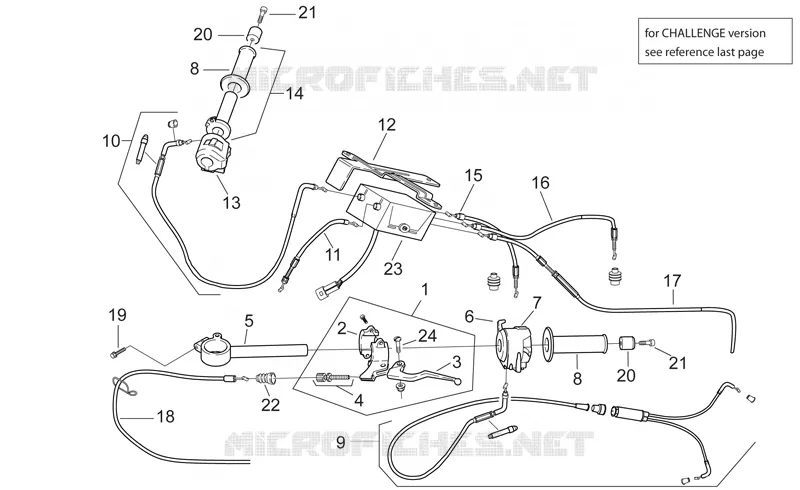

Parts Catalog
Controls II
6
Parts Diagram
Parts Catalog
Controls I
by
Water cooler
Controls II
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
1
Clutch lever cpl.
AP8118366
Not Available
2
Clutch lever U-bolt
AP8218077
$10,00 Unit Price incl. VAT
3
Clutch lever
AP8118417
Not Available
4
Clutch lever adjuster
AP8118348
$6,35 Unit Price incl. VAT
5
Left half handlebar
AP8118379
Not Available
6
Starter lever
AP8118308
$8,16 Unit Price incl. VAT
7
LH lights selector
AP8124331
Not Available
8
Handgrip pair, black
AP8118485
Not Available
9
Choke cable
AP8114286
$34,45 Unit Price incl. VAT
10
Throttle cable
AP8114287
Not Available
11
Splitter cable-actuator
AP8114305
Not Available
12
Splitter supp.plate
AP8134310
Not Available
13
RH lights selector
AP8124330
Not Available
13
RH lights selector
AP8124526
Not Available
14
Throttle+hand grip
AP8118466
Not Available
15
Splitter cable-mix pump
AP8114306
$54,15 Unit Price incl. VAT
16
Splitter cable-RH carbur.
AP8114307
Not Available
17
Splitter cable-RH carbur.
AP8114308
Not Available
18
Clutch cable
AP8114367
$29,94 Unit Price incl. VAT
19
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
20
Anti.v weight, black
AP8102813
Not Available
21
Hex socket screw M6x30
AP8150220
$0,17 Unit Price incl. VAT
22
Clutch cable bellows
AP8114370
Not Available
23
Splitter + sensor
AP8124052
Not Available
24
Lever pin
AP8113719
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
