Front fork I for APRILIA RS 250 from 2002

Front fork I

1

Plug cover

AP8138403

Not Available

2

Bouchon tube

AP8123243

$10,95 Unit Price incl. VAT

3

Fork upper plate

AP8123727

Not Available

4

Bague;

AP8123734

$8,16 Unit Price incl. VAT

5

Dust cover

AP8120542

Not Available

6

Anneau support pare-poussière

AP8101272

$3,65 Unit Price incl. VAT

7

Gasket ring

AP8101106

Not Available

8

Tap.roller bearing

AP8110010

Not Available

9

Roulement à rouleaux

AP8110024

$15,98 Unit Price incl. VAT

10

Stem base

AP8123726

Not Available

11

Douille bloc. direction

AP8121302

$3,65 Unit Price incl. VAT

12

Hex socket screw M8x16

AP8150211

$3,65 Unit Price incl. VAT

13

Vis bride

AP8152289

$3,65 Unit Price incl. VAT

14

Brake hose hanger

AP8134438

Not Available

15

Vis bride

AP8152272

$0,08 Unit Price incl. VAT

16

Vis bride

AP8152281

$1,70 Unit Price incl. VAT

17

"Plaque ""Aprilia""";

AP8157770

$6,44 Unit Price incl. VAT

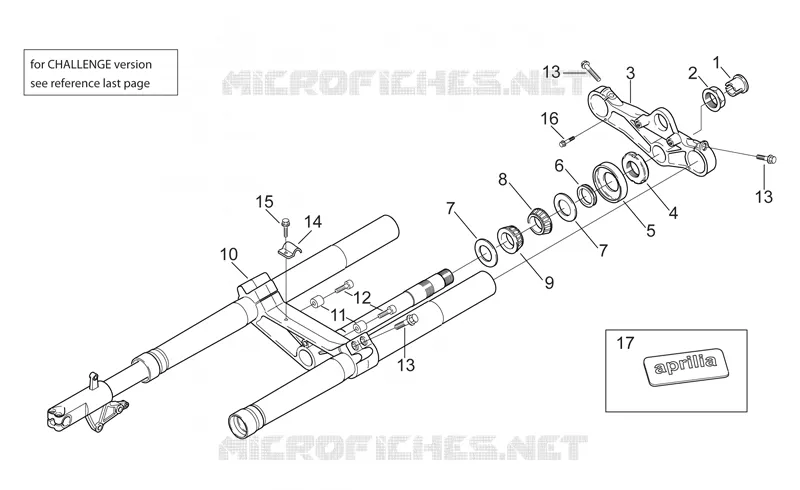

Find the detailed Front fork I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
