Frame for APRILIA RS 250 from 2002

Frame

1

Frame

AP8146052

Not Available

2

Painted cradle

AP8146054

Not Available

3

Lateral stand

AP8135781

Not Available

4

Stand plate w. phor ctng.

AP8135513

Not Available

5

Ressort rappel béq.

AP8221204

$5,45 Unit Price incl. VAT

6

Ress.retour béq.int.

AP8221211

$4,86 Unit Price incl. VAT

7

Ecrou bas

AP8152001

$0,51 Unit Price incl. VAT

8

Vis bride

AP8152289

$3,65 Unit Price incl. VAT

9

Ecrou autobloqu.

AP8152300

$0,34 Unit Price incl. VAT

10

Hex socket screw M8x40

AP8150171

Not Available

11

Vis

AP8150236

$0,55 Unit Price incl. VAT

12

Ecrou autobloqu.

AP8152300

$0,34 Unit Price incl. VAT

13

Vis fix. béquille

AP8105103

$6,60 Unit Price incl. VAT

14

Caoutchouc supp.radiat.

AP8120937

$6,30 Unit Price incl. VAT

15

Eng. connecting plate

AP8134328

Not Available

16

Silent-block lower attachment

AP8120902

Not Available

17

Vis bride

AP8152294

$7,75 Unit Price incl. VAT

18

Rivet fileté+moleté

AP8102544

$5,23 Unit Price incl. VAT

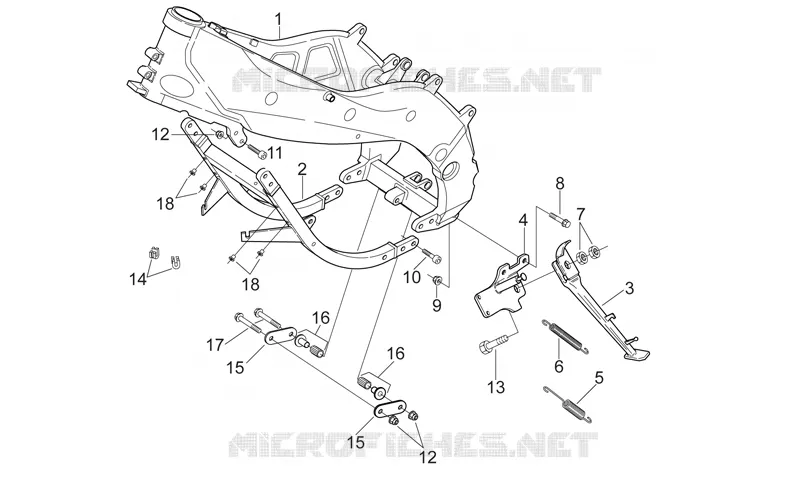

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
