1
Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog

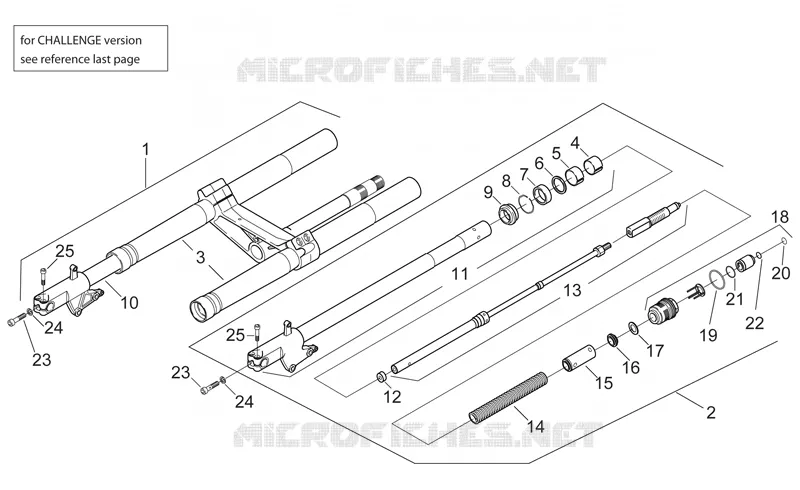

Fork II
6
Parts Diagram
Parts Catalog
Front fork I
by
Swing arm
Fork II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
1
RH hub
AP8123724
Not Available
2
LH hub
AP8123725
Not Available
3
Sleeve
AP8123808
Not Available
4
Bush
AP8123802
Not Available
5
Bush
AP8123803
Not Available
6
Ring
AP8123804
$3,65 Unit Price incl. VAT
7
Oil seal
AP8123805
Not Available
8
Circlip
AP8123806
Not Available
9
Dust cover
AP8123807
Not Available
10
Hub+RH fork leg
AP8123800
Not Available
11
Hub+LH fork leg
AP8123801
Not Available
12
Plunger attachment bush
AP8123810
$5,20 Unit Price incl. VAT
13
Plunger, complete
AP8123809
Not Available
14
Spring
AP8123813
Not Available
15
Preload tube cpl.
AP8123814
Not Available
16
Ring
AP8123815
$8,01 Unit Price incl. VAT
17
Washer
AP8123816
$3,65 Unit Price incl. VAT
18
Sleeve plug cpl.
AP8123817
$244,99 Unit Price incl. VAT
19
O-ring
AP8123818
$8,01 Unit Price incl. VAT
20
Stop ring
AP8123821
$3,65 Unit Price incl. VAT
21
O-ring
AP8123819
$3,65 Unit Price incl. VAT
22
O-ring
AP8123820
$3,65 Unit Price incl. VAT
23
screw M10x1,5
AP8123812
$6,60 Unit Price incl. VAT
24
Special washer
AP8123811
$3,65 Unit Price incl. VAT
25
Hex socket screw M8x35
AP8150236
$0,55 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
