Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog
Engine/Carburettor II
6
Parts Diagram
Parts Catalog
Engine/Carburettor I
by
Crankcase
Engine/Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
1
Valve motor
AP8600027
Not Available
2
screw M6x16
AP8600028
Not Available
3
Valve lever
AP8600029
Not Available
4
Valves lever pulley
AP8600030
Not Available
5
Oil pump lever pulley
AP8600031
Not Available
6
Spring
AP8600032
$6,30 Unit Price incl. VAT
7
screw
AP8600034
Not Available
8
Spacer 5x10x15
AP8600033
Not Available
9
Rear cylinder valve fastener
AP8114304
Not Available
10
Rear cylinder valve fastener
AP8114303
Not Available
11
Front cylinder valve fastener
AP8114302
Not Available
12
Front cylinder valve fastener
AP8114301
Not Available
13
Maintenance
AP8138192
Not Available
14
Max air solenoid
AP8600193
Not Available
15
Min air solenoid
AP8600194
$243,81 Unit Price incl. VAT
16
Nut M6
AP8600071
Not Available
17
Rubber spacer
AP8600197
Not Available
18
Support plate
AP8600196
$6,60 Unit Price incl. VAT
19
Max air pipe
AP8600200
Not Available
20
Valve lever cable guide
AP8102418
Not Available
21
2-way union
AP8600201
Not Available
22
Spacer
AP8102425
Not Available
23
Min air pipe
AP8600198
Not Available
24
Solenoids air filter
AP8600195
Not Available
25
3-way union
AP8600184
$12,62 Unit Price incl. VAT
26
Max air pipe
AP8600199
Not Available

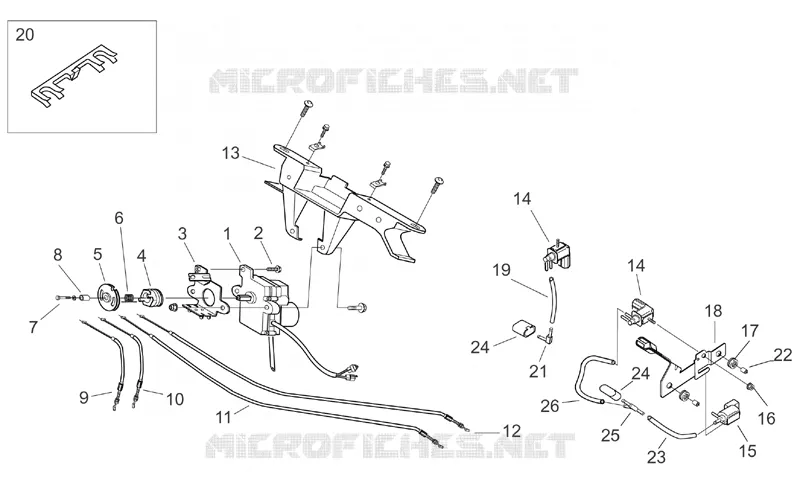

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
