1
Engine displacement
50
2
Model
RS
3
Year
1997
4
Trim
RS 50
5
Parts Catalog

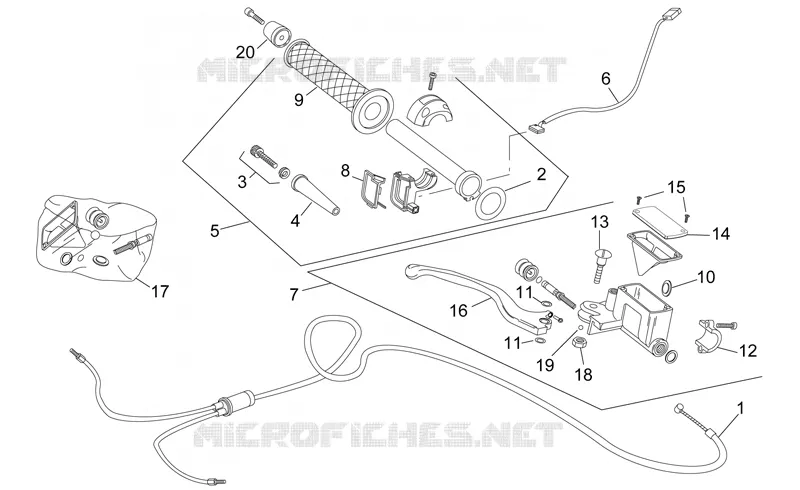

RH controls
6
Parts Diagram
Parts Catalog
Handlebar - Dashboard
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
1
Throttle cable
AP8214085
Not Available
1
Throttle cable
AP8214128
Not Available
2
RH handgrip washer
AP8121826
Not Available
3
Cable adjuster
AP8118162
Not Available
4
Throttle adjuster cap
AP8220143
$2,97 Unit Price incl. VAT
5
Throttle+hand grips
AP8218385
Not Available
5
Throttle+hand grips
AP8218102
Not Available
6
Start pushbutton
AP8212831
Not Available
7
Front master cilinder D11
AP8213259
Not Available
7
Front master cilinder D11
AP8213262
Not Available
8
Cover
AP8218346
$2,13 Unit Price incl. VAT
9
Handgrip - pair
AP8118287
$14,18 Unit Price incl. VAT
9
Handgrip pair, yellow
AP8118497
Not Available
10
Master cyl.level window
AP8213277
Not Available
11
Washer
AP8213281
Not Available
12
U-bolt
AP8213078
$15,22 Unit Price incl. VAT
13
Brake lever pin
AP8113413
$10,76 Unit Price incl. VAT
14
Tank cover
AP8230240
Not Available
15
Pump cover screw
AP8221200
$3,65 Unit Price incl. VAT
16
Front brake lever
AP8218279
Not Available
17
Pump revision kit
AP8213339
Not Available
18
Nut
AP8218345
Not Available
19
Ball 7,1
AP8201326
$3,65 Unit Price incl. VAT
20
H.bars anti.v weight
AP8201565
Not Available
20
Anti.v weight, grey
AP8201918
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
