Parts Catalog
Rear master cylinder
6

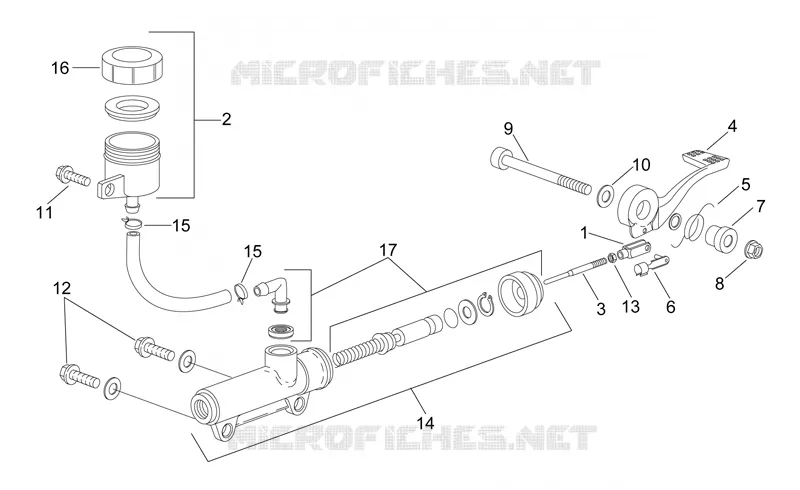

Parts Diagram
Parts Catalog
Front wheel
by
Rear wheel
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
1
Fork
AP8101968
$5,09 Unit Price incl. VAT
2
Oil tank
AP8213086
Not Available
3
Master cylinder rod
AP8213127
Not Available
4
Rear brake lever
AP8232508
Not Available
5
Brake return spring
AP8221107
Not Available
6
Gear selector fork clips
AP8201301
$2,24 Unit Price incl. VAT
7
Rear brake lever bush
AP8221106
Not Available
8
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
9
Hex socket screw
AP8150087
$3,65 Unit Price incl. VAT
10
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
11
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
12
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
13
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
14
Rear master cyl.w/out tank 11
AP8113247
Not Available
15
Hose clamp D9,6
AP8102811
$3,65 Unit Price incl. VAT
16
Oil filler cap
AP8131320
Not Available
17
Gasket set
AP8113312
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
