Parts Catalog
Rear body II
6

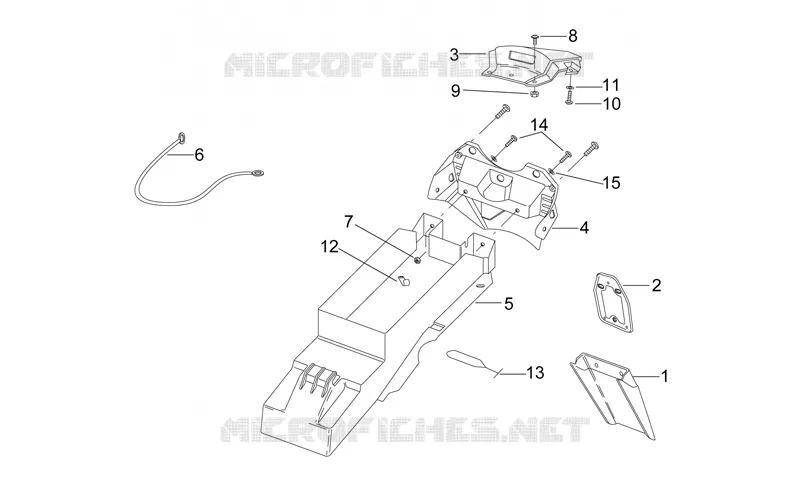

Parts Diagram
Parts Catalog
Rear body I
by
Rear body III
Rear body II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Rear mudg. extension
AP8226242
Not Available
2
N. plate holder kit
AP8202054
Not Available
3
Rear fairing, s.grey
AP8239387
Not Available
3
Rear fairing, black
AP8231217
Not Available
3
Rear fairing, black
AP8239908
Not Available
3
Rear fairing, black varn.
AP8248142
Not Available
3
Rear fairing, blade grey
AP8239887
Not Available
3
Rear fairing, m.grey
AP8238607
Not Available
4
Number plate holder, black
AP8226226
Not Available
5
Saddle compartment, black
AP8231392
Not Available
6
Helmet lock cable
AP8201611
Not Available
7
Low self-locking nut
AP8150311
$0,08 Unit Price incl. VAT
8
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
9
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
10
Hex socket screw M5x12
AP8152267
$0,34 Unit Price incl. VAT
11
Washer 6,4x12,5*
AP8150178
$0,34 Unit Price incl. VAT
12
Battery hook
AP8101313
Not Available
13
Elastic
AP8120177
$5,38 Unit Price incl. VAT
14
Hex socket screw M5x16
AP8152268
$3,38 Unit Price incl. VAT
15
Washer 10x5,3x1*
AP8120591
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
