1
Engine displacement
50
2
Model
RS
3
Year
1998
4
Trim
RS 50
5
Parts Catalog
Front fork I
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
Fork II

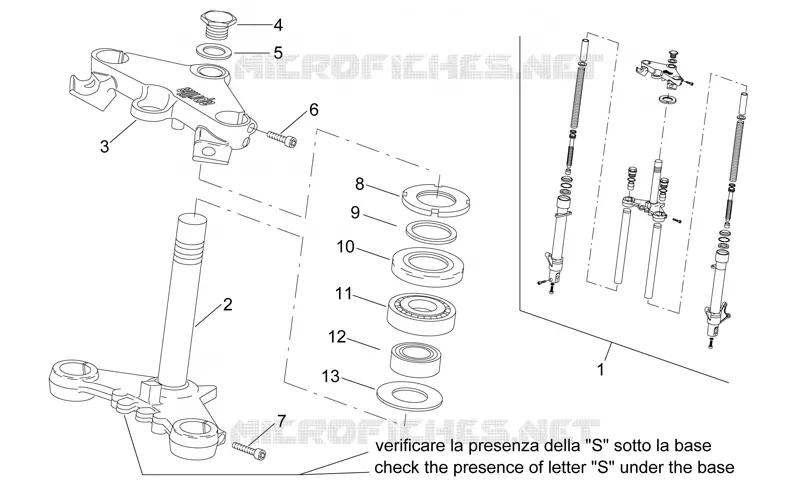

Front fork I
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Front fork
AP8203576
Not Available
2
Stem base
AP8203586
Not Available
2
Stem base
AP8203849
Not Available
3
Fork upper plate
AP8203852
Not Available
3
Fork upper plate
AP8203587
Not Available
4
Plug
AP8203855
Not Available
4
Plug
AP8203579
Not Available
5
Washer
AP8203854
Not Available
5
Washer
AP8203252
Not Available
6
screw M8x25
AP8203589
Not Available
6
screw M8x25
AP8203853
Not Available
7
screw M8x35
AP8203590
$3,65 Unit Price incl. VAT
7
screw M8x35
AP8203850
Not Available
8
Fork lower ring nut
AP8203588
$10,00 Unit Price incl. VAT
8
Ring nut
AP8203851
Not Available
9
Spacer
AP8101272
$3,65 Unit Price incl. VAT
10
Dust cover
AP8120211
$1,37 Unit Price incl. VAT
11
Ball bearing
AP8110025
$10,00 Unit Price incl. VAT
12
Roller bearing
AP8110024
$15,98 Unit Price incl. VAT
13
Lower dust cover ring
AP8101271
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
