1
Engine displacement
50
2
Model
RS
3
Year
1996
4
Trim
RS 50
5
Parts Catalog

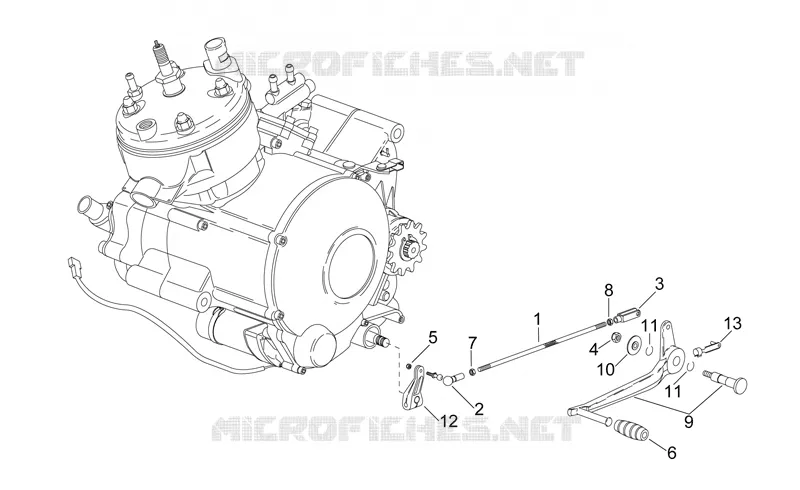

Gear lever
6
Parts Diagram
Parts Catalog
Air box
by
Exhaust unit
Gear lever
1
2
3
4
5
6
7
8
9
10
11
11
12
13
1
Gearbox linkage rod
AP8121163
Not Available
2
Left ball joint M6
AP8110053
$5,13 Unit Price incl. VAT
3
Fork
AP8101968
$5,09 Unit Price incl. VAT
4
Low nut M8
AP8150431
$0,34 Unit Price incl. VAT
5
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
6
Rubber spacer
AP8220205
Not Available
7
Nut
AP8152138
$0,68 Unit Price incl. VAT
8
Nut M6
AP8150026
$0,16 Unit Price incl. VAT
9
Gear lever
AP8232838
$98,68 Unit Price incl. VAT
10
Gearbox lever bush
AP8221205
Not Available
11
O-ring 115
AP8220177
$0,15 Unit Price incl. VAT
12
Gearbox connecting rod
AP8232207
$44,42 Unit Price incl. VAT
13
Gear selector fork clips
AP8201301
$2,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
