1
Engine displacement
50
2
Model
RS
3
Year
1996
4
Trim
RS 50
5
Parts Catalog
Central body I
6

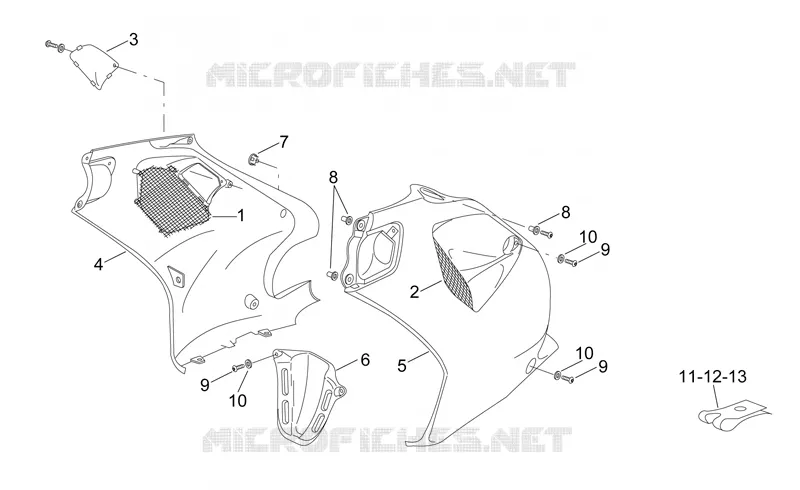

Parts Diagram
Parts Catalog
Fuel tank
by
Central body II
Central body I
1
2
3
4
5
6
7
8
8
9
9
9
10
10
10
11
12
13
1
RH side panel guard
AP8131733
Not Available
2
LH side panel guard
AP8131734
Not Available
3
RH side fair.cover, black
AP8238037
Not Available
3
RH side fair.cover, red
AP8239882
Not Available
3
RH side fair.cover, black vrn.
AP8248136
Not Available
3
RH side fair.cover, grey
AP8238601
Not Available
3
RH side fair.cover, grey
AP8239341
Not Available
4
RH side panel, black
AP8238035
Not Available
4
RH side panel, black varn.
AP8248143
Not Available
4
RH side panel, red
AP8239879
Not Available
4
RH side panel, m.grey
AP8238599
Not Available
4
RH side panel, black
AP8248107
Not Available
4
RH side panel, black
AP8239903
Not Available
4
RH side panel, black varn.
AP8248134
Not Available
4
RH side panel, s.grey
AP8239382
Not Available
5
LH side panel, red
AP8239880
Not Available
5
LH side panel, s.grey
AP8239383
Not Available
5
LH side panel, black
AP8238036
Not Available
5
LH side panel, m.grey
AP8238600
Not Available
5
LH side panel, black
AP8239904
Not Available
5
LH side panel, black
AP8248108
Not Available
5
LH side panel, black varn.
AP8248135
Not Available
6
Front fairing, black
AP8231242
Not Available
6
LH side panel, black varn.
AP8248144
Not Available
7
Cover
AP8220323
$5,38 Unit Price incl. VAT
8
Rubber w/ insert
AP8120531
$6,30 Unit Price incl. VAT
9
Hex socket screw M5x16
AP8152268
$3,38 Unit Price incl. VAT
10
Washer 5,5x15x1,6
AP8150248
$0,16 Unit Price incl. VAT
11
Clip M4
AP8102381
$1,09 Unit Price incl. VAT
12
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
13
Clip M6
AP8102376
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
