1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2001
4
Trim
ETV Capo Nord
5
Parts Catalog

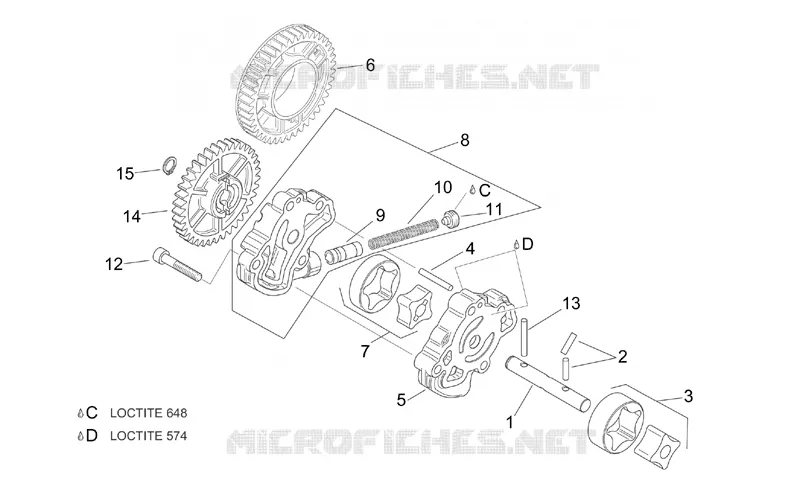

Oil pump
6
Parts Diagram
Parts Catalog
Sealing and lubricating agents
by
Engine
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Oil pump shaft assy.
AP0220423
Not Available
2
Pin 4x15,8
AP0232730
Not Available
3
Internal and external rotor
AP0256680
$216,72 Unit Price incl. VAT
4
Pin 4x25,8
AP0232970
$4,82 Unit Price incl. VAT
5
Oil pressing pump casing
AP0211620
Not Available
6
Oil pump gear z=42
AP0634470
$49,33 Unit Price incl. VAT
7
Internal and external rotor
AP0956275
Not Available
8
Oil pump cover cpl.
AP0211631
Not Available
9
Pressure adj. piston
AP0256510
$37,57 Unit Price incl. VAT
10
Spring
AP0239449
Not Available
11
Valve closer screw m12x1,5
AP0241650
Not Available
12
Hex socket screw M6x45
AP0241821
Not Available
13
Pin
AP0232430
Not Available
14
Oil pump gear
AP0634483
Not Available
15
Circlip 10x1
AP0245330
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
