1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2001
4
Trim
ETV Capo Nord
5
Parts Catalog
Steering
6

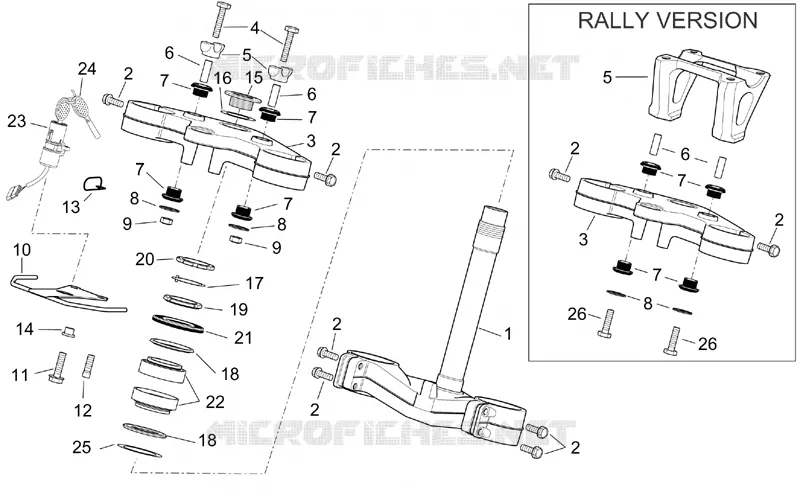

Parts Diagram
Parts Catalog
Connecting rod and shock absorber
by
Front body III - RALLY
Steering
1
2
2
2
2
2
2
2
3
3
4
5
5
6
6
6
7
7
7
7
7
7
8
8
8
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
26
1
Stem base
AP8123884
Not Available
2
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
3
Fork upper plate
AP8163220
Not Available
3
Fork upper plate
AP8123883
$184,75 Unit Price incl. VAT
4
screw
AP8123513
$3,65 Unit Price incl. VAT
5
U-bolt
AP8144634
Not Available
5
U-bolt
AP8123886
Not Available
5
U-bolt
AP8163219
Not Available
6
Spacer
AP8121549
Not Available
6
Pipe
AP8123510
$10,00 Unit Price incl. VAT
7
Rubber spacer
AP8144222
$6,73 Unit Price incl. VAT
8
Cup
AP8123721
$1,60 Unit Price incl. VAT
9
Nut
AP8123512
$3,65 Unit Price incl. VAT
10
Steering lock cover
AP8139797
Not Available
11
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
12
Shear rivet M8x20
AP8152229
$3,70 Unit Price incl. VAT
13
Cable-guide
AP8120428
$5,38 Unit Price incl. VAT
14
Bush
AP8121678
Not Available
15
Upper plate fixing bush
AP8121205
$15,54 Unit Price incl. VAT
16
Stem plug washer
AP8152384
$1,70 Unit Price incl. VAT
17
Steering security plate
AP8121207
$5,38 Unit Price incl. VAT
18
Dust cover ring
AP8123641
$8,12 Unit Price incl. VAT
19
Ring nut
AP8123642
$10,64 Unit Price incl. VAT
20
Return ring nut
AP8123643
$10,64 Unit Price incl. VAT
21
Dust cover ring
AP8123644
$1,01 Unit Price incl. VAT
22
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
23
Main switch - steering lock
AP8104941
$253,15 Unit Price incl. VAT
23
Main switch - steering lock
AP8124895
Not Available
24
Aprilia milled key
AP8102880
Not Available
25
Washer
AP8121454
$22,29 Unit Price incl. VAT
26
Hex socket screw M10x65
AP8150392
$2,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
