1
Engine displacement
50
2
Model
RS
3
Year
2003
4
Trim
RS 50
5
Parts Catalog

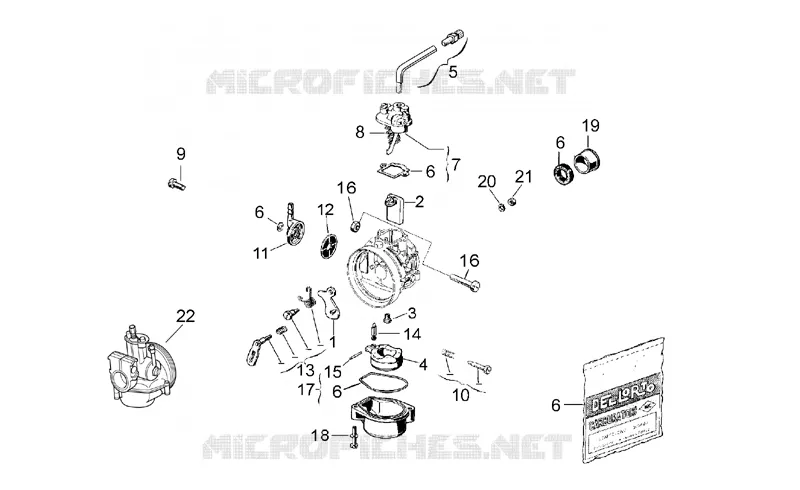

Carburettor - PG
6
Parts Diagram
Parts Catalog
Oil pump - Manifold
by
Carburettor I - SE-TS
Carburettor - PG
1
2
3
4
5
6
6
6
6
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
1
Air valve
AP8222663
$6,38 Unit Price incl. VAT
2
Gas valve
AP8222655
Not Available
2
Gas valve
AP8222654
$9,50 Unit Price incl. VAT
2
Gas valve
AP8222678
Not Available
3
Main jet 52
AP8222638
$4,82 Unit Price incl. VAT
3
Main jet 63
AP8206938
Not Available
3
Main jet 50
AP8106091
Not Available
3
Main jet 56
AP8222639
Not Available
4
Float gr.3,5
AP8222658
Not Available
5
Deflector pipe kit
AP8206937
Not Available
6
Gasket envelope
AP8222679
Not Available
7
Valve cover
AP8222676
Not Available
8
Gas valve return spring
AP8222644
Not Available
9
Cap fixing screw
AP8222645
$3,65 Unit Price incl. VAT
10
Gas valve adj.screw kit
AP8222650
Not Available
11
Fuel pipe union cap
AP8222659
$5,53 Unit Price incl. VAT
12
Fuel filter
AP8222656
Not Available
13
Air valve control rod kit
AP8222653
Not Available
14
Fuel closing needle
AP8222643
Not Available
15
Float pin
AP8222662
Not Available
16
Collar clamping screw kit
AP8222652
Not Available
17
Float chamber
AP8222635
Not Available
18
Float chamber fixing screw
AP8222634
Not Available
19
Insulating reduction 21-18
AP8222632
Not Available
20
Air rod nut washer
AP8222642
Not Available
21
Air rod nut
AP8222660
Not Available
22
Carburettor SHA 14-12
AP8206872
Not Available
22
Carburettor SHA 14-9
AP8206879
Not Available
22
Carburettor sha14-9
AP8206959
Not Available
22
Carburettor sha14-9
AP8206407
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
