1
Engine displacement
50
2
Model
RS
3
Year
2009
4
Trim
RS 50
5
Parts Catalog

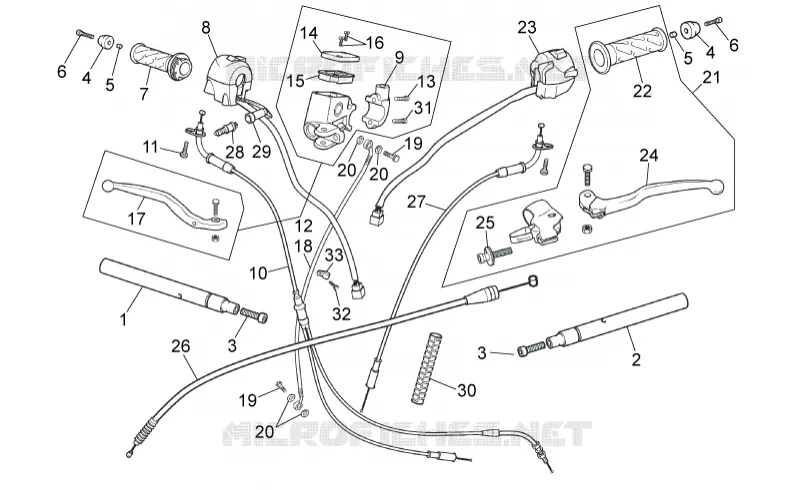

Controls
6
Parts Diagram
Parts Catalog
Front body II
by
Rear wheel
Controls
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
Right half handlebar
00H00902471
Not Available
2
Left half handlebar
00H00902481
Not Available
3
screw
00002083001
Not Available
4
H.bars anti.v weight
00G02102923
Not Available
5
Pin
00H01600911
Not Available
6
screw
00004154000
$3,65 Unit Price incl. VAT
7
Throttle+hand grip
00H00903081
Not Available
8
Switch
86202R
$43,25 Unit Price incl. VAT
9
U-bolt
00H02101901
Not Available
10
Throttle cable w/ splitter
00H00932171
Not Available
11
screw
00000012516
$3,65 Unit Price incl. VAT
12
Front master cilinder
00H02111081
Not Available
13
screw
00004163500
Not Available
14
Tank cover
00H02102191
Not Available
15
Gasket
00H02102861
Not Available
16
screw 4M80X12
00014041200
Not Available
17
Lever
00H00907201
Not Available
18
Brake hose
00H00922751
Not Available
19
Oil pipe screw
00006309260
Not Available
20
Washer
00006321040
Not Available
21
Clutch control complete
00H02108611
Not Available
22
LH hand grip
00H00902071
Not Available
23
LH lights selector
861205
Not Available
24
Clutch lever
00H00904291
Not Available
25
Clutch lever adjuster
00H00900551
Not Available
26
Clutch cable
00H00921301
Not Available
27
Choke cable
00H00904651
Not Available
28
Stop switch
00D01000701
$7,02 Unit Price incl. VAT
29
Cap
00005010760
$4,82 Unit Price incl. VAT
30
Guard
00H01000541
Not Available
31
screw
00004062200
$3,65 Unit Price incl. VAT
32
screw
00002061011
Not Available
33
Flange
00H02200591
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
