Parts Catalog
Carburettor
6

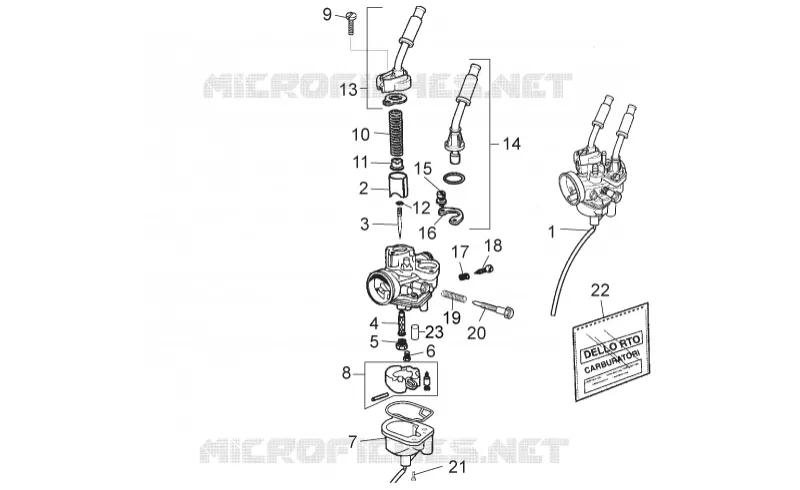

Parts Diagram
Parts Catalog
Exhaust unit
by
Gear box
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Carburettor
CM152704
Not Available
1
Carburettor
CM152705
Not Available
2
Tyre
0000000
Not Available
3
Conical pin
CM107514
$11,34 Unit Price incl. VAT
3
Conical pin
CM107506
Not Available
4
Needle valve
00H03206421
Not Available
5
Main jet 68
AP8206901
Not Available
5
Main jet 78
CM101729
Not Available
5
Main jet
CM101747
Not Available
6
Idle jet 30
AP8206922
$2,74 Unit Price incl. VAT
7
Fuel chamber
00H03206201
Not Available
8
Float
00H03204281
Not Available
9
screw
00G03200061
Not Available
10
Valve gas return spring
00G03201071
Not Available
11
Conical pin clip
00G03200511
Not Available
12
Conical pin clip
00G03201371
Not Available
13
Mixture chamber cover kit
00H03204231
Not Available
14
Wire starter kit
CM146203
Not Available
15
screw
00G03200541
Not Available
16
Plate
00G03200551
Not Available
17
Spring
00G03200721
Not Available
18
Air adjuster screw
CM107701
$6,60 Unit Price incl. VAT
19
Spring
00G03200101
Not Available
20
Gas valve adj.screw
00G04102131
Not Available
21
screw
00G03201091
Not Available
22
Gasket envelope
00H04103771
Not Available
23
Diffuser
CM106214
$17,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
