1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2002
4
Trim
ETV Capo Nord
5
Parts Catalog

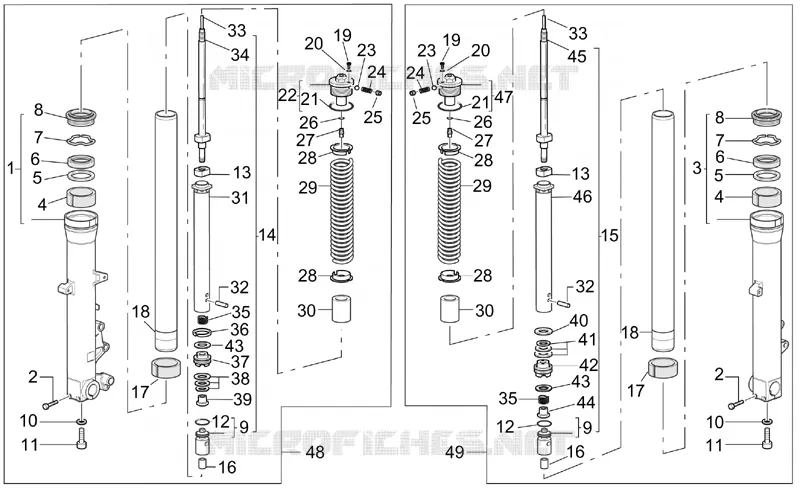

Front fork - RALLY
6
Parts Diagram
Parts Catalog
RALLY Rhandlebar
by
Cylinder head and valves
Front fork - RALLY
1
2
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
29
29
30
30
31
32
32
33
33
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
1
RH sleeve
AP8163082
Not Available
2
Screw w/ flange M6x35
AP8163066
$3,65 Unit Price incl. VAT
3
LH sleeve
AP8163067
Not Available
4
Bush
AP8163068
Not Available
5
Ring
AP8163069
$8,01 Unit Price incl. VAT
6
Oil seal
AP8163070
$46,92 Unit Price incl. VAT
7
Stop ring
AP8163071
$3,65 Unit Price incl. VAT
8
Dust cover
AP8163072
$18,86 Unit Price incl. VAT
9
Stroke limit stop complete
AP8163366
Not Available
10
Seal washer
AP8123206
$8,01 Unit Price incl. VAT
11
Screw
AP8123561
Not Available
12
O-ring
AP8163355
Not Available
13
Nut M12x1,25 CH19
AP8163351
Not Available
14
RH plunger, complete
AP8163368
Not Available
15
LH plunger, complete
AP8163367
Not Available
16
Locating peg
AP8163359
Not Available
17
Bush
AP8163074
Not Available
18
Sleeve
AP8163365
Not Available
19
Screw complete M4x6
AP8163369
$3,65 Unit Price incl. VAT
20
O-ring
AP8163185
Not Available
21
O-ring
AP8163083
$3,65 Unit Price incl. VAT
22
RH plug
AP8163363
Not Available
23
Ball d.3
AP8163354
Not Available
24
Spring
AP8163339
Not Available
25
Dowel
AP8150497
Not Available
26
O-ring
AP8163143
Not Available
27
Dowel+O-ring
AP8163370
$21,37 Unit Price incl. VAT
28
Ring d.50
AP8163361
Not Available
29
Spring
AP8163341
$82,69 Unit Price incl. VAT
30
Spacer 43x3x77,5
AP8163475
Not Available
31
Flange
AP8163348
Not Available
32
Pin 8x30
AP8163358
Not Available
33
Rod
AP8163362
Not Available
35
Spring
AP8163340
Not Available
36
Piston ring d.26
AP8163353
$24,90 Unit Price incl. VAT
37
RH piston rebound d.26
AP8163357
Not Available
38
Spacer 22x8,1x0,2
AP8163344
Not Available
38
Spacer 21x8,1x0,2
AP8163346
Not Available
38
Spacer 23x8,1x0,2
AP8163342
Not Available
38
Spacer 20x8,1x0,2
AP8163343
Not Available
39
Nut M6x1 h.6
AP8163350
Not Available
40
Cup
AP8163360
Not Available
41
Spacer 22x8,1x0,2
AP8163344
Not Available
41
Spacer 21x8,1x0,2
AP8163346
Not Available
41
Spacer 23x8,1x0,2
AP8163342
Not Available
42
LH piston compression d.26
AP8163356
$11,77 Unit Price incl. VAT
43
Spacer 23x8,1x0,3
AP8163345
Not Available
44
Nut M6 H.11 fe ch.12
AP8163352
Not Available
45
LH Rod complete
AP8163337
Not Available
46
LH Flange
AP8163347
Not Available
47
LH plug
AP8163364
Not Available
48
RH hub
AP8163241
Not Available
49
LH hub
AP8163242
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
