Parts Catalog
Water pump
6
Parts Diagram
Parts Catalog
Front lights
by
Front body II

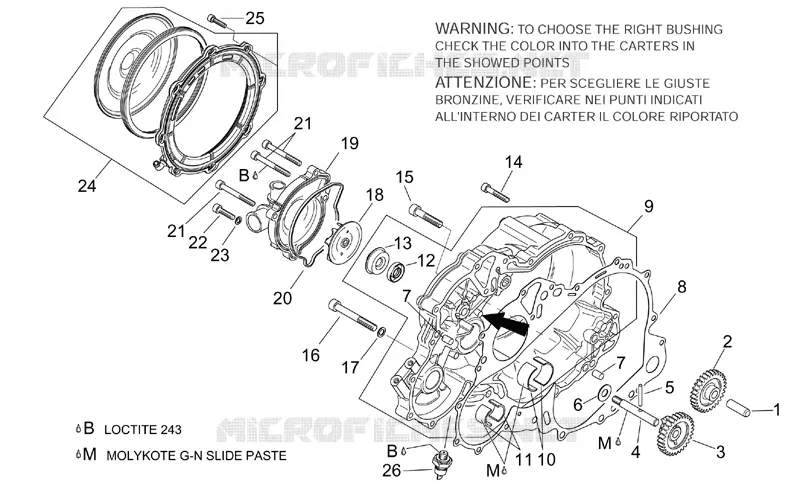

Water pump
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
1
Pin
AP0929930
Not Available
2
Idle gear
AP0634500
Not Available
3
Water pump gear
AP0634490
Not Available
4
Water pump shaft assy.
AP0220410
Not Available
5
Pin
AP0232430
Not Available
6
Washer 10,1x22x1
AP0227685
$3,65 Unit Price incl. VAT
7
Pin M8x12
AP0632010
Not Available
8
Gasket
AP0650330
Not Available
9
Clutch cover
AP0610151
Not Available
10
Bushing half-shell, blue
AP0233790
Not Available
10
Bushing half-shell, yellow
AP0233793
Not Available
10
Bushing half-shell, red
AP0233791
Not Available
11
Bearing half-shell 20x24x16
AP0233780
Not Available
12
Oil seal 10x25x5
AP0650310
Not Available
13
Pump mechanical seal
AP0650370
Not Available
14
Hex socket screw
AP0241811
$3,65 Unit Price incl. VAT
15
Hex socket screw M8x40
AP0840681
Not Available
16
Hex socket screw
AP0841841
$3,65 Unit Price incl. VAT
17
Gasket ring 8x13
AP0950141
Not Available
18
Impeller
AP0222500
Not Available
19
Water pump casing
AP0222512
Not Available
20
Gasket
AP0650240
Not Available
21
Hex socket screw
AP0240331
Not Available
22
Hex socket screw M6x25
AP0840861
$3,65 Unit Price incl. VAT
23
Gasket ring 6x10
AP0230415
Not Available
24
Diaphragm disc cpl.
AP0211778
Not Available
25
Hex socket screw
AP0240181
Not Available
26
Oil pressure switch
AP0956169
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
