1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2003
4
Trim
ETV Capo Nord
5
Parts Catalog
Exhaust pipe
6

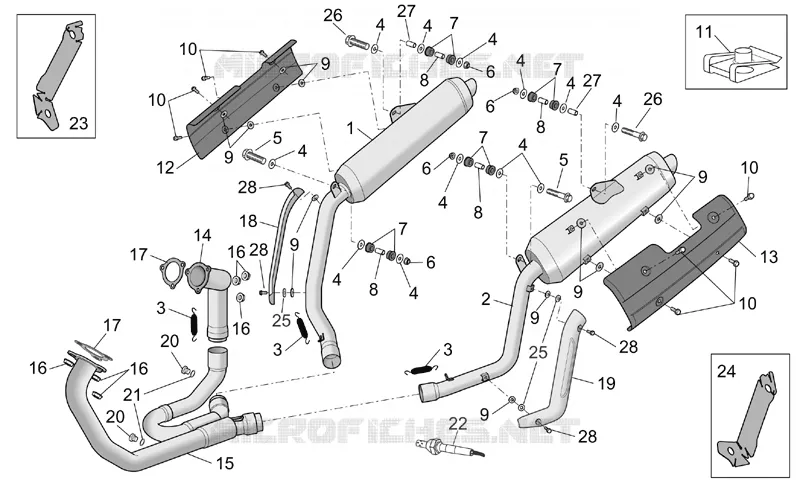

Parts Diagram
Parts Catalog
Rear wheel
by
Ignition unit
Exhaust pipe
1
2
3
3
3
4
4
4
4
4
4
4
4
4
4
4
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
9
9
9
9
10
10
10
10
11
12
13
14
15
16
16
16
16
17
17
18
19
20
20
21
22
23
24
25
25
26
26
27
27
28
28
28
28
1
RH silencer
AP8119669
Not Available
1
RH silencer
AP8119498
Not Available
2
LH silencer
AP8119499
Not Available
2
LH silencer
AP8119700
Not Available
3
Exhaust pipes spring
AP8121355
Not Available
4
Washer
AP8150018
$0,34 Unit Price incl. VAT
5
Hex socket screw M8x50
AP8150277
$0,42 Unit Price incl. VAT
5
Screw w/ flange M8x50
AP8152292
$3,65 Unit Price incl. VAT
6
Self-locking nut M8
AP8152300
$0,34 Unit Price incl. VAT
7
Rubber exhaust
AP8144071
$6,70 Unit Price incl. VAT
8
Spacer *
AP8121773
$3,38 Unit Price incl. VAT
9
Washer 5,5X20X1
AP8121513
$3,65 Unit Price incl. VAT
10
Screw w/ flange M6x12
AP8152342
$9,41 Unit Price incl. VAT
11
Clip M6
AP8102376
Not Available
12
Silencer dx protection
AP8119786
$137,72 Unit Price incl. VAT
12
Silencer sx protection
AP8119787
$69,32 Unit Price incl. VAT
12
Silencer dx protection
AP8119500
Not Available
13
Silencer sx protection
AP8119501
Not Available
14
Rear exhaust pipe
AP8119523
Not Available
15
Front. Exhaust pipe
AP8119524
Not Available
15
Front. Exhaust pipe
AP8119712
Not Available
16
Nut M8
AP8150334
Not Available
17
Exhaust pipe gasket
AP8119414
$5,38 Unit Price incl. VAT
18
RH exhaust pipe shield
AP8119713
Not Available
18
RH exhaust pipe shield
AP8146194
Not Available
19
LH exhaust pipe shield
AP8119714
Not Available
19
LH exhaust pipe shield
AP8146427
Not Available
20
CO intake screw
AP8104367
Not Available
21
Washer 10x14x1
AP8150489
Not Available
22
Lamda sensor
AP8127295
Not Available
23
RH heat protection
AP8117203
Not Available
24
LH heat protection
AP8117204
Not Available
25
Spacer
AP8121576
$7,29 Unit Price incl. VAT
26
Screw w/ flange
AP8152293
$3,70 Unit Price incl. VAT
26
Hex socket screw M8x50
AP8150277
$0,42 Unit Price incl. VAT
27
Spacer bush
AP8120314
Not Available
28
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
28
Screw w/ flange M6x12
AP8152342
$9,41 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
