1
Engine displacement
1000
2
Model
CAPONORD
3
Year
2003
4
Trim
ETV Capo Nord
5
Parts Catalog
Cylinder head and valves
6
Parts Diagram
Parts Catalog
Front fork - RALLY
by
Front body III - STANDARD

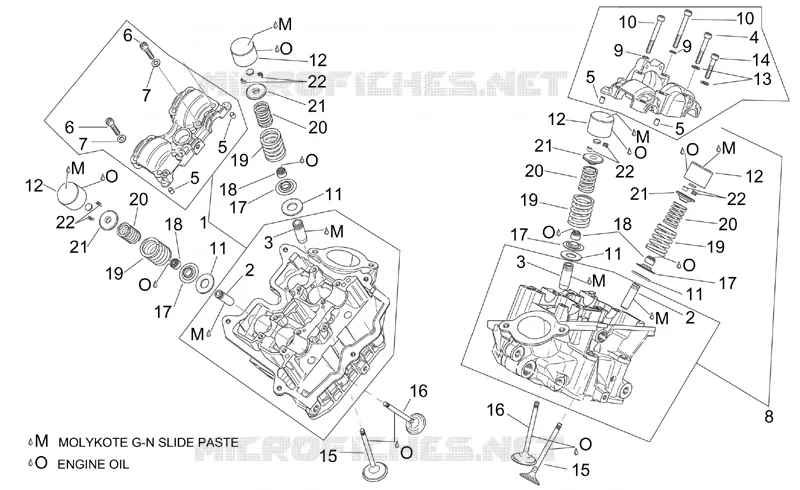

Cylinder head and valves
1
2
2
3
3
4
5
5
5
5
6
6
7
7
8
9
9
10
10
11
11
11
11
12
12
12
12
13
14
15
15
16
16
17
17
17
17
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
22
22
1
Front cylinder head cpl.
AP0613405
Not Available
2
Exhaust valve guide
AP0253926
Not Available
3
Intake valve guide
AP0253921
Not Available
4
Hex socket screw M6x45
AP0241821
Not Available
5
Pin 6x8
AP0232210
Not Available
6
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
7
Washer 6,2x12x1
AP0927945
Not Available
8
Rear cylinder head cpl.
AP0623153
Not Available
9
Washer 6,1x9,8x1
AP0927863
Not Available
10
Hex socket screw
AP0240331
Not Available
11
Thrust washer
AP0227980
Not Available
12
Valve lifter bucket
AP0253990
Not Available
13
Washer 6,2x12x1
AP0927945
Not Available
14
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
15
Exhaust valve 31mm
AP0254021
Not Available
16
Intake valve 36 mm
AP0254011
Not Available
17
Valve spring plate
AP0253965
$9,50 Unit Price incl. VAT
18
Valve stem seal
AP0230510
Not Available
19
Ext. valve spring
AP0239520
Not Available
20
Int. valve spring
AP0239510
$20,41 Unit Price incl. VAT
21
Valve spring plate
AP0253956
Not Available
22
Valve half-cone
AP0253645
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
