Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Rear cylinder timing system
6
Parts Diagram
Parts Catalog
by
Front mudguard-Pillar
Rear cylinder timing system
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
Rear exhaust camshaft
2A000329
Not Available
2
Intake camshaft
2A000507
Not Available
3
Couronne distribution
857546
$111,83 Unit Price incl. VAT
4
Screw w/ flange M8x10,3
857008
Not Available
5
Chaîne de distribution
897444
$62,72 Unit Price incl. VAT
6
Patin tendeur de chaîne
2A000559
$17,01 Unit Price incl. VAT
7
Special screw M6x18
857476
$3,21 Unit Price incl. VAT
8
Douille
857477
$1,49 Unit Price incl. VAT
9
Compl. chain tensioner brake pad
1A004792
Not Available
10
Vis spéciale M16X1
857094
$3,50 Unit Price incl. VAT
11
Rondelle
857096
$2,01 Unit Price incl. VAT
12
CHAIN TIGHTENER
1A0047845
Not Available
13
Joint
857176
$4,89 Unit Price incl. VAT

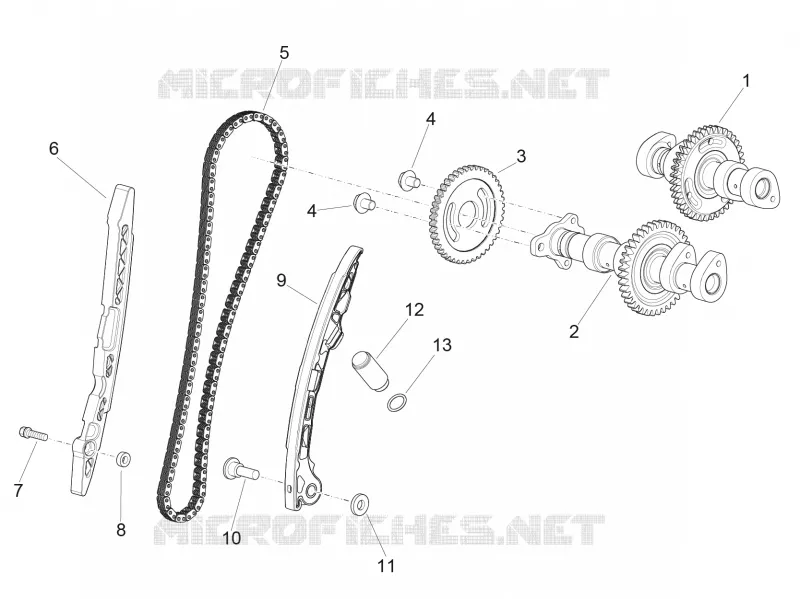

Find the detailed Rear cylinder timing system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
