1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Lubrication
6
Parts Diagram
Parts Catalog
Water pump
by
Front brake caliper
Lubrication
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
27
28
29
30
1
Filtre huile
2A000595
$48,60 Unit Price incl. VAT
2
Joint
B046072
$7,23 Unit Price incl. VAT
3
Assy overpressure oil valve
2A0002535
Not Available
4
Joint
857176
$4,89 Unit Price incl. VAT
5
Motor oil cup
2A000331
Not Available
6
Joint coupelle à huile
2A000576
$36,15 Unit Price incl. VAT
6
Sump gasket
2A000311
Not Available
7
Bague d'étanchéité
2A000276
$3,65 Unit Price incl. VAT
8
Pompe huile
2A000540
$439,57 Unit Price incl. VAT
9
Bague d'étanchéité
857189
$4,54 Unit Price incl. VAT
10
Raccord filtre à huile
857168
$4,46 Unit Price incl. VAT
11
Oil filter
857187
$9,19 Unit Price incl. VAT
12
Screw w/ flange M6x30
289731
Not Available
13
RONDELLE
016335
$0,07 Unit Price incl. VAT
13
Spring washer 6,4x11x0,5*
AP8150429
Not Available
14
Minimum oil pressure sensor
1D001138
Not Available
15
TUBO OLIO
2A000357
$7,23 Unit Price incl. VAT
16
Bouchon huile
857184
$8,03 Unit Price incl. VAT
17
Joint
857147
$0,83 Unit Price incl. VAT
18
Joint
857176
$4,89 Unit Price incl. VAT
19
Tuyau huile
2B001806
$66,71 Unit Price incl. VAT
20
VIS
277330
$0,31 Unit Price incl. VAT
21
VIS
709099
$0,16 Unit Price incl. VAT
22
Engrenage
85273R
$147,40 Unit Price incl. VAT
23
Rouleau NRB 5X19,8
857192
$1,71 Unit Price incl. VAT
24
Bouchon
B044718
$8,64 Unit Price incl. VAT
25
CIRCLIPS S00641200
006412
$0,09 Unit Price incl. VAT
26
Vis
AP8150044
$3,65 Unit Price incl. VAT
27
Plaque
2A000358
$14,30 Unit Price incl. VAT
28
screw TBEI M6x16
2A000621
Not Available
29
Joint
857452
$12,21 Unit Price incl. VAT
30
RONDELLE S01377700
013777
$0,08 Unit Price incl. VAT

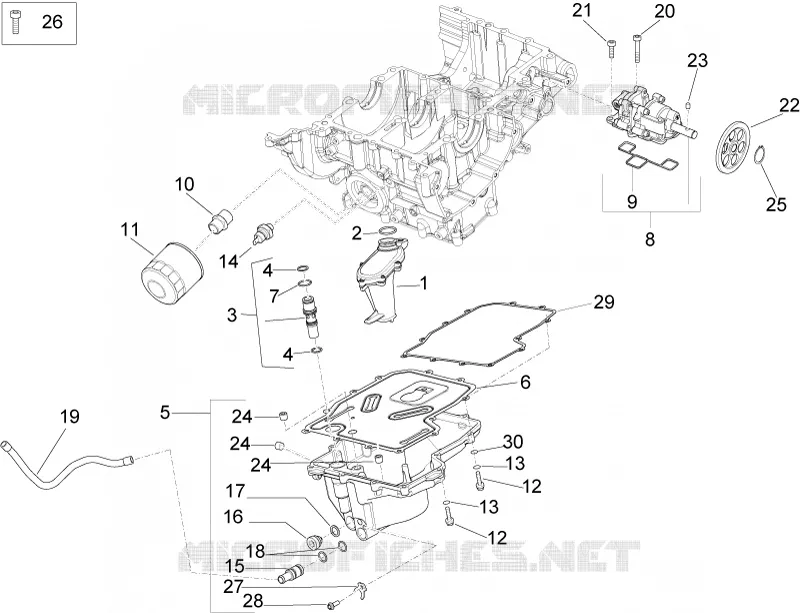

Find the detailed Lubrication APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
