1
Engine displacement
50
2
Model
CLASSIC
3
Year
1999
4
Trim
Classic
5
Parts Catalog
Left crankcase
6
Parts Diagram
Parts Catalog
Right crankcase
by
Oil pump
Left crankcase
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Screw M6x12
AP8206202
Not Available
2
O-ring D11,8x2,4
AP8206262
$3,65 Unit Price incl. VAT
3
Tachometer driven gear
AP8206251
Not Available
4
Hex stop scrw M12x1,25
AP8502589
Not Available
5
Joint vis
AP8502757
$3,65 Unit Price incl. VAT
6
Pin D8,51x7,6
AP8509209
$4,82 Unit Price incl. VAT
7
Tachometer drive spindle
AP8206299
Not Available
8
Tachometer driving gear
AP8206252
Not Available
9
Blue steel washer D8,4x16
AP8206277
$5,20 Unit Price incl. VAT
10
Oil drain hex screw M8x10
AP8502586
$3,65 Unit Price incl. VAT
11
Oil plug seal D8x14
AP8502759
Not Available
12
Crankcase assy
AP8206378
Not Available
13
Tachometer ouput flange
AP8206240
Not Available

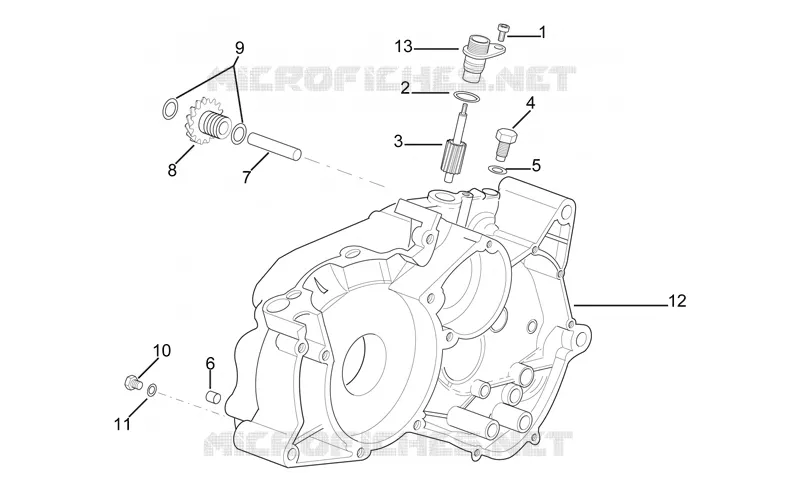

Find the detailed Left crankcase APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
