1
Engine displacement
50
2
Model
CLASSIC
3
Year
1999
4
Trim
Classic
5
Parts Catalog
Driven shaft 4 speed gearbox
6
Parts Diagram
Parts Catalog
Primary gear shaft 5 Speed
by
Driven shaft 5 speed gearbox
Driven shaft 4 speed gearbox
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
1
Intermediate gear Z=14
AP8206314
Not Available
1
Intermediate gear Z=13
AP8206355
$20,11 Unit Price incl. VAT
1
Intermediate gear Z=11
AP8206313
Not Available
2
Outside circlip D17
AP8501484
Not Available
3
Bearing D17x40x12
AP8502626
Not Available
4
Outside circlip D17
AP8501484
Not Available
5
Secondary gear shaft
AP8206411
Not Available
5
Secondary gear shaft
AP8206436
Not Available
6
Sliding coupling 3-4 spd.
AP8206330
Not Available
7
Outside circlip D18
AP8501471
Not Available
8
Sliding coupling 1-2 spd.
AP8206416
Not Available
9
Blue steel washer D13x25
AP8206347
Not Available
10
Gear bush 13x20x13,5
AP8206536
Not Available
11
1st wheel gear Z=37
AP8206324
Not Available
12
Blue steel washer D18x30
AP8502500
Not Available
13
3rd wheel gear Z=29
AP8206414
Not Available
14
2nd wheel gear Z=33
AP8206415
Not Available
15
Blue steel washer D17,2x30
AP8502498
Not Available
16
Oil seal D17x35x7
AP8206291
Not Available
17
4th pinion gear Z=26
AP8206413
Not Available
18
Secondary shaft cpl.
AP8206412
Not Available

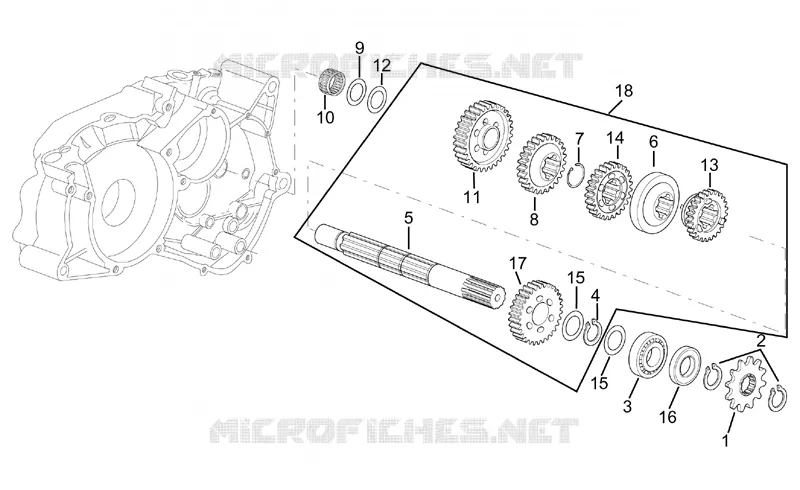

Find the detailed Driven shaft 4 speed gearbox APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
