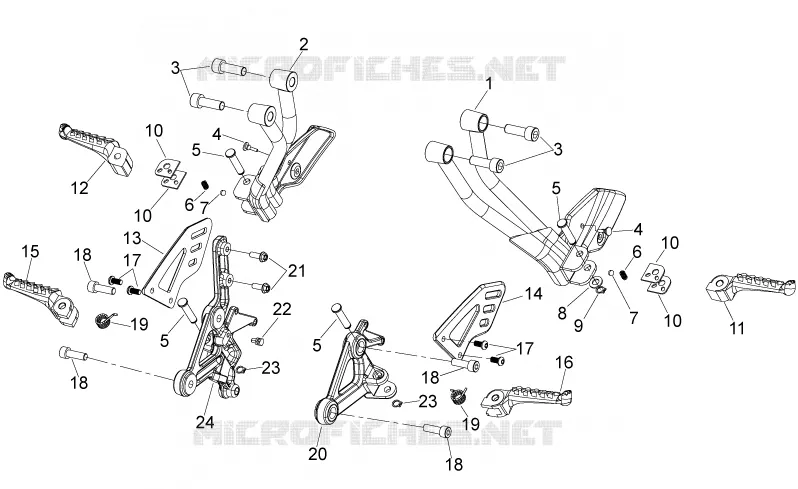

Foot rests FOR Shiver FROM 2015

Foot rests

1

LH footrest support

894673

$53,51 Unit Price incl. VAT

2

RH footrest support

894672

$53,51 Unit Price incl. VAT

3

Hex socket screw M10x30

AP8150195

$0,67 Unit Price incl. VAT

4

Cover

293717

$0,19 Unit Price incl. VAT

5

Footrest pin

AP8121566

$5,38 Unit Price incl. VAT

6

Coil compress. spring

AP8121133

$0,53 Unit Price incl. VAT

7

Ball D6,35

AP8101861

$0,10 Unit Price incl. VAT

8

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

9

Stop ring

AP8152409

$3,65 Unit Price incl. VAT

10

Footrest plate

AP8134451

$2,56 Unit Price incl. VAT

11

Rear footrest, LH

AP8146406

Not Available

12

Rear footrest, RH

AP8146405

Not Available

13

Protection RH - Front fairing

895435

$15,91 Unit Price incl. VAT

14

LH protection

858788

$15,91 Unit Price incl. VAT

15

RH Foot rests

AP8146403

$83,43 Unit Price incl. VAT

16

LH Foot rests

AP8146404

$83,43 Unit Price incl. VAT

17

Hex socket screw M6x12

AP8150537

$3,65 Unit Price incl. VAT

18

Hex socket screw M8x25

AP8150170

$0,27 Unit Price incl. VAT

19

Footrest return spring

AP8121224

$1,35 Unit Price incl. VAT

20

LH front footrest bracket

894585

Not Available

21

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

22

Fixing pin

859946

$4,89 Unit Price incl. VAT

23

Stop ring

AP8152409

$3,65 Unit Price incl. VAT

24

RH front footrest bracket

894584

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
