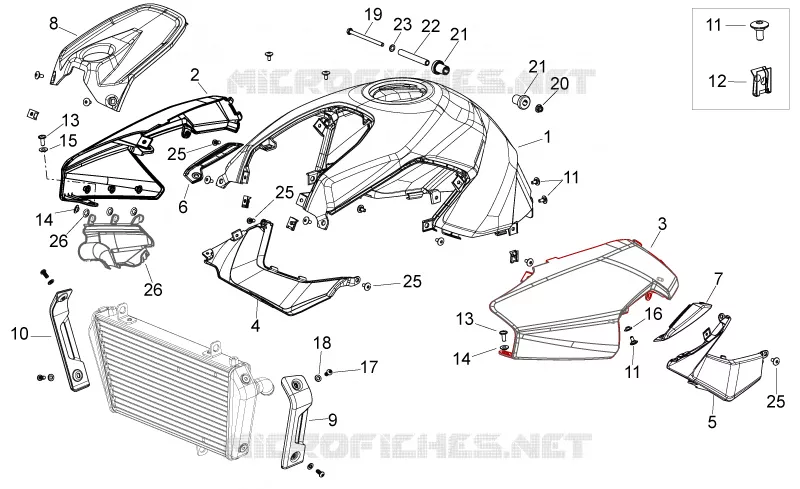

Central body FOR Shiver FROM 2015

Central body

1

Fuel tank cover, red

85166100000XRC

$725,45 Unit Price incl. VAT

1

Fuel tank cover, black

85166100XN5

$691,64 Unit Price incl. VAT

2

RH air duct, black

89599600000NI

$229,01 Unit Price incl. VAT

3

L.H. BODY SIDE

89599700000NI

$229,01 Unit Price incl. VAT

4

RH side cover

895917

$30,24 Unit Price incl. VAT

5

LH side cover

895918

$30,24 Unit Price incl. VAT

6

RH bumper

851663

$2,01 Unit Price incl. VAT

7

LH bumper

851664

$2,01 Unit Price incl. VAT

8

Cover

851662

Not Available

9

LH water cooler protection

851650

Not Available

10

RH water cooler protection

851649

Not Available

11

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

12

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

13

Screw w/ flange M6x16

AP8152246

$0,27 Unit Price incl. VAT

14

Bush

AP8121032

$0,59 Unit Price incl. VAT

15

T bush

AP8121795

$3,38 Unit Price incl. VAT

16

T bush

843213

$0,75 Unit Price incl. VAT

17

Hex socket screw M6x12

AP8150537

$3,65 Unit Price incl. VAT

18

Washer 12,5x6,4*

AP8150380

$2,95 Unit Price incl. VAT

19

Hex screw M6x90

AP8150459

$3,65 Unit Price incl. VAT

20

Self-locking nut M6

AP8152299

$0,34 Unit Price incl. VAT

21

Rubber spacer

AP8123934

$5,38 Unit Price incl. VAT

22

Fuel tank bush

AP8134419

$8,01 Unit Price incl. VAT

23

Washer 6,4x12,5*

AP8150014

$3,70 Unit Price incl. VAT

24

RH cover, black

895556

$8,12 Unit Price incl. VAT

25

Self tapping screw L=20 mm

267958

$0,25 Unit Price incl. VAT

26

Spring washer 6,5x12,5

AP8152179

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
