by

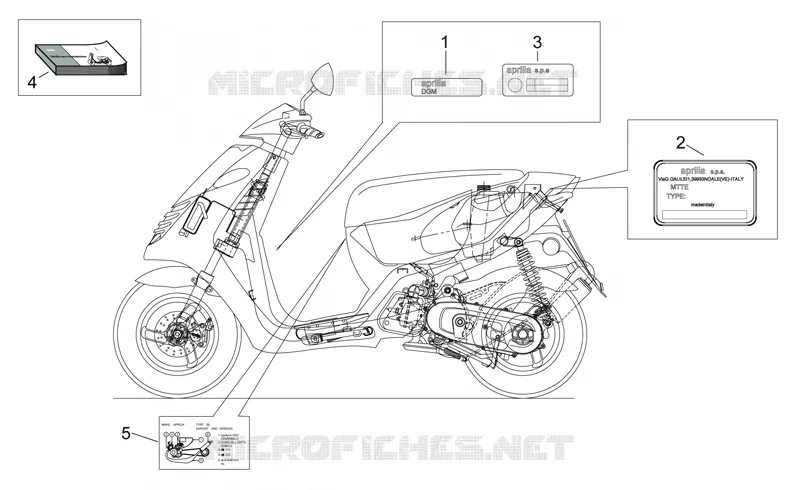

Plate set and handbook
1
2
3
4
5
1
DGM dataplate
AP8237880
Not Available
1
DGM dataplate
AP8257655
Not Available
2
Constructor dataplate
AP8257656
Not Available
2
Constructor dataplate
AP8267766
Not Available
2
Constructor dataplate
AP8247878
Not Available
2
Constructor dataplate
AP8247693
Not Available
2
Constructor dataplate
AP8247726
Not Available
2
Constructor dataplate
AP8247807
Not Available
2
Constructor dataplate
AP8247809
Not Available
2
Constructor dataplate
AP8247724
Not Available
3
ECE dataplate
AP8237879
Not Available
3
ECE dataplate
AP8247849
Not Available
4
Operator's handbook -gr-
AP8202107
Not Available
4
Operator's handbook -nl-dk-uk-
AP8202106
Not Available
4
Operator's handbook-I-
AP8202011
Not Available
4
Operator's handbook-P-E-UK-
AP8202339
Not Available
4
Operator's handbook -p-e-uk-
AP8202105
Not Available
4
Operator's handbook -I-F-D-
AP8202104
Not Available
5
Tamperproof dataplate
AP8247812
Not Available
5
Tamperproof dataplate
AP8257468
Not Available
5
Tamperproof dataplate
AP8267767
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
