Catalytic exhaust unit FOR Sonic H2O FROM 2008

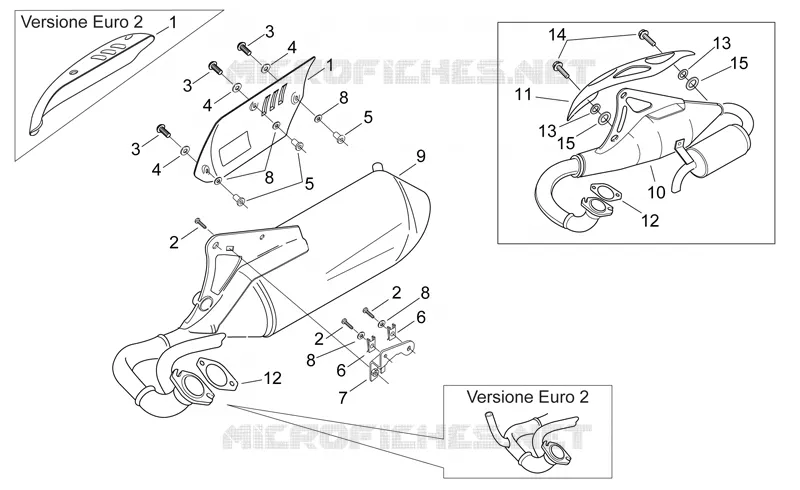

Catalytic exhaust unit

1

Exhaust pipe protection

AP8219487

$38,27 Unit Price incl. VAT

1

Exhaust pipe prot., chr.black

AP8219437

Not Available

2

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

3

Hex socket screw

AP8152108

$0,16 Unit Price incl. VAT

4

Washer 6,4x12,5*

AP8150178

$0,34 Unit Price incl. VAT

5

Washer 6,6x18*

AP8150179

$0,08 Unit Price incl. VAT

6

Clip M6

AP8102376

Not Available

7

Mudguard plate

AP8234150

Not Available

8

Insulating washer

AP8120870

$3,65 Unit Price incl. VAT

9

Cat.exhaust pipe

AP8219584

Not Available

9

Cat.exhaust pipe -d-

AP8219393

Not Available

9

Cat.exhaust pipe -nl-

AP8219394

Not Available

10

Cat.exhaust pipe -i-

AP8219484

Not Available

11

Steel exhaust pipe prot.

AP8219452

$55,19 Unit Price incl. VAT

12

Exhaust pipe gasket

AP8219212

$4,82 Unit Price incl. VAT

13

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

14

Screw w/ flange M6x12

AP8152342

$9,41 Unit Price incl. VAT

15

Insulating washer

AP8221297

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
