Engine displacement
50
2
Model
SONIC
3
Year
2006
4
Trim
Sonic H2O
5
Parts Catalog
Central crank-case set
6
Parts Diagram
Parts Catalog
Connecting rod group
by
Clutch
Central crank-case set
1
2
3
4
4
5
5
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
1
Screw M6x12
AP8206202
Not Available
2
Oil seal retainer plate
AP8206138
Not Available
3
Screw M6x35
AP8502567
Not Available
4
Crankcase assy
AP8206843
Not Available
5
Crankcase pin D12x16
AP8206169
Not Available
6
Screw w/ flange M8x15
AP8206203
Not Available
7
Sealed bearing D17x35x10
AP8206481
Not Available
8
Spacer D12x17x227
AP8206503
Not Available
9
Outside circlip D17
AP8206233
Not Available
10
Silent-block, crankcase
AP8206129
Not Available
11
Inside circlip D40
AP8501481
$5,20 Unit Price incl. VAT
12
Bearing D17x40x12
AP8206558
Not Available
13
Oil seal
AP8206215
$7,94 Unit Price incl. VAT
14
Union+Breather pipe
AP8206823
Not Available
15
Pivot pour sabots frein
AP8206841
$11,45 Unit Price incl. VAT
16
Cover rubber caps
AP8206825
Not Available
17
Nut
AP8206830
Not Available
18
Oil filler plug
AP8206475
$5,53 Unit Price incl. VAT
19
O-ring D13,3x2,4
AP8206482
Not Available
20
Gasket 8,2x15x1,2
AP8206488
$3,65 Unit Price incl. VAT

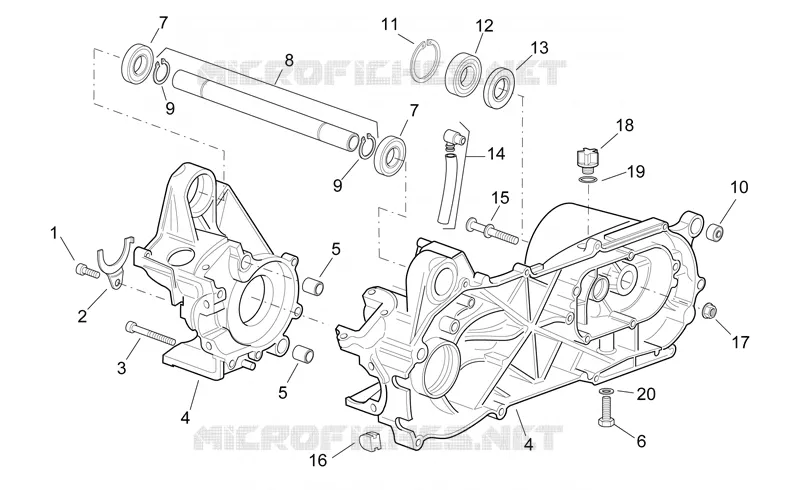

Find the detailed Central crank-case set APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
