Engine displacement
50
2
Model
SONIC
3
Year
2006
4
Trim
Sonic H2O
5
Parts Catalog
Transmission final drive
6
Parts Diagram
Parts Catalog
Variator
by
Covers - kick starter
Transmission final drive
1
2
3
4
5
6
7
8
9
10
1
Bearing D10x30x9
AP8206159
Not Available
2
Bearing d17x35x10
AP8206835
Not Available
3
Drive shaft Z=13
AP8206815
Not Available
4
Drive shaft assy Z=36
AP8206814
Not Available
5
Idle gear assy Z=12/48
AP8206826
Not Available
6
Belleville spring
AP8206828
Not Available
7
Blue steel washer d12,1x25,8
AP8206833
Not Available
8
Screw
AP8206832
Not Available
9
Washer 6,5x18x1,5
AP8206834
Not Available
10
Outside circlip D17
AP8206233
Not Available

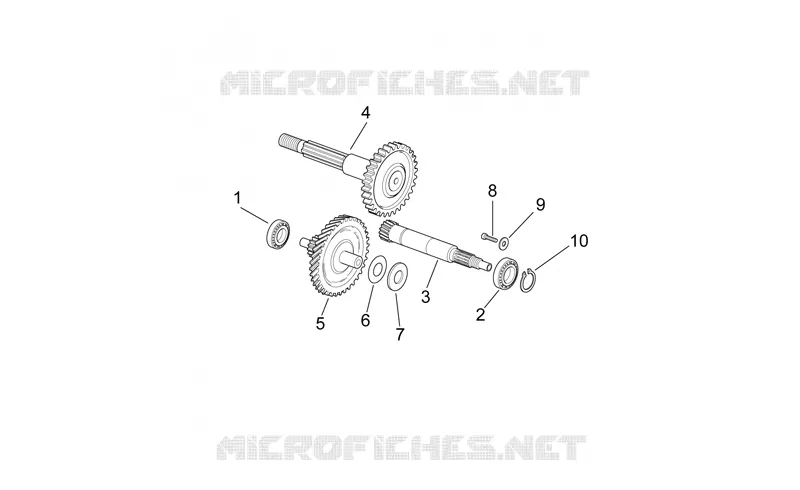

Find the detailed Transmission final drive APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
