1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2005
4
Trim
Sport City E2
5
Parts Catalog

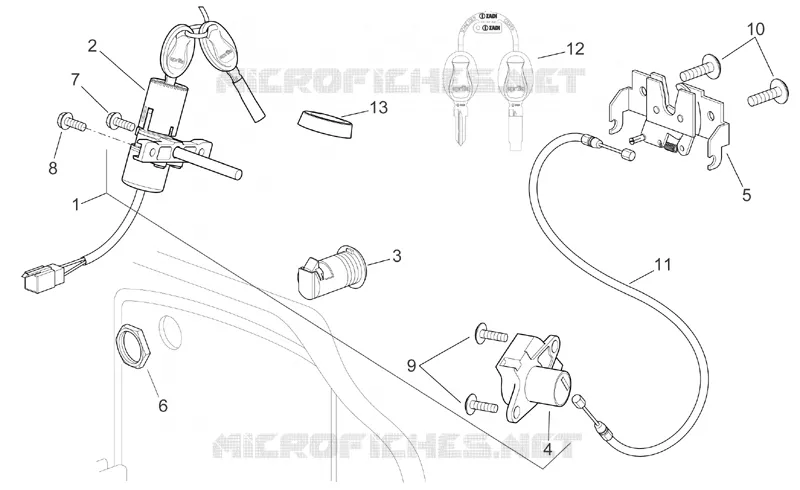

Lock hardware kit
6
Parts Diagram
Parts Catalog
Variator cover
by
Acc. - Various
Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Lock kit
AP8104726
Not Available
2
Main switch - steering lock
AP8590049
Not Available
3
Front box lock
AP8104612
$25,38 Unit Price incl. VAT
4
Saddle lock
AP8104611
$31,21 Unit Price incl. VAT
5
Saddle closing plate
AP8102947
$15,98 Unit Price incl. VAT
6
Lock nut M22x1,5
AP8102523
$8,01 Unit Price incl. VAT
7
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
8
Shear rivet M6x17
AP8152140
$3,65 Unit Price incl. VAT
9
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
10
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
11
Lock cable
AP8104422
$14,30 Unit Price incl. VAT
12
"Aprilia" key w/out transpo.
AP8104613
$8,91 Unit Price incl. VAT
13
Main switch seal
AP8127461
$1,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
