1
Engine displacement
125
2
Model
SPORT-CITY
3
Year
2005
4
Trim
Sport City E2
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Plate set and handbooks
by
Kaifa front fork - Hubs, sleeves

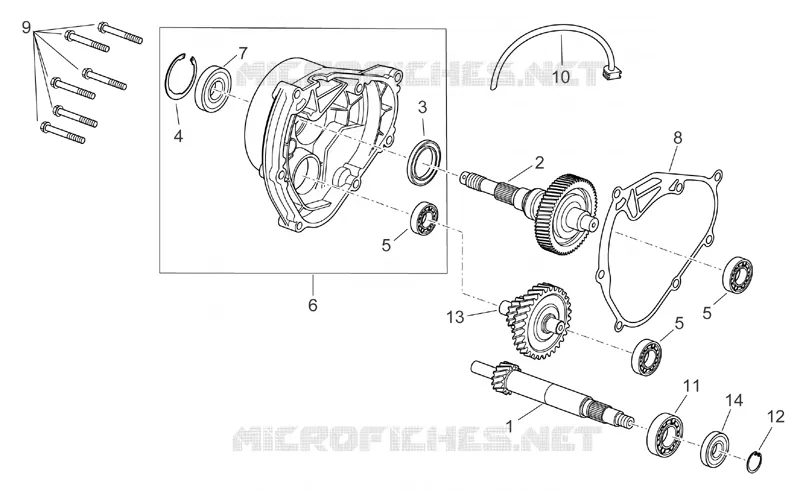

Transmission
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
1
Driven pulley shaft
AP8577061
Not Available
2
Rear wheel axis cpl.
AP8590010
Not Available
2
Rear wheel axis cpl.
AP8575020
Not Available
3
Oil seal 38x50x7
AP8560125
Not Available
4
Circlip
AP8560130
Not Available
5
Bearing d15x42x13
AP8560019
Not Available
6
Transmission cover cpl.
AP8577007
Not Available
7
Bearing d30x55x13
AP8560126
Not Available
8
Gasket
AP8575022
Not Available
9
screw
AP8570077
Not Available
10
Breather
AP8580189
$14,89 Unit Price incl. VAT
11
Bearing
AP8570030
Not Available
12
Snap ring
AP8560007
Not Available
13
Transmission shaft
AP8590009
Not Available
13
Transmission shaft
AP8575023
Not Available
14
Gasket ring
AP8550577
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
