1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Saddle support
6

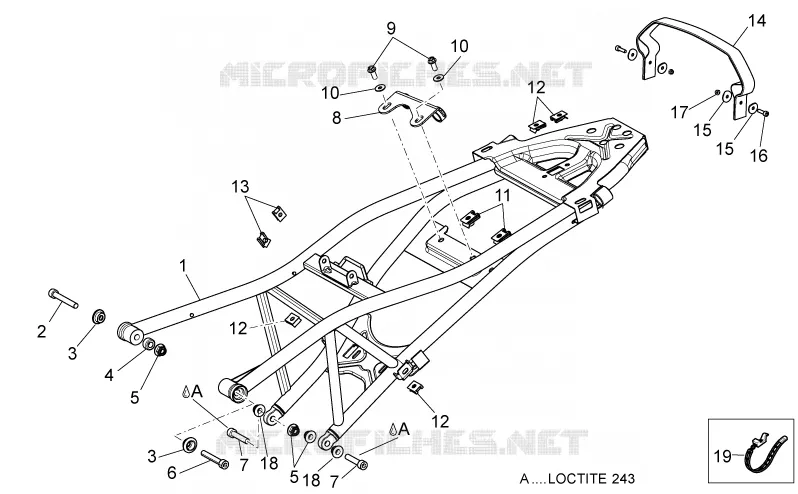

Parts Diagram
Parts Catalog
Electrical system I
by
Cylinder head - valves
Saddle support
19
18
18
17
16
15
15
14
13
12
12
12
11
10
10
9
8
7
7
6
5
5
4
3
3
2
1
1
Saddle support, grey
85495200XH7
$1 404,34 Unit Price incl. VAT
1
Saddle support
85495200XEG
$1 404,34 Unit Price incl. VAT
1
Saddle support, grey
85495200XH4
Not Available
2
Hex socket screw
478761
$0,44 Unit Price incl. VAT
3
Bush
860909
$2,11 Unit Price incl. VAT
4
Spacer
854962
$1,87 Unit Price incl. VAT
5
Nut
AP8152350
$3,65 Unit Price incl. VAT
6
Hex socket screw M8x55
AP8150046
$3,65 Unit Price incl. VAT
7
Hex socket screw M8x40
AP8150171
Not Available
8
Exhaust pipe support clamp
851789
$15,34 Unit Price incl. VAT
9
Screw w/ flange M8x20
AP8152286
$0,25 Unit Price incl. VAT
10
Washer
AP8150018
$0,34 Unit Price incl. VAT
11
Spring plate M8
575268
$1,19 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
14
Pillion seat strap
890566
Not Available
15
Plate
890486
$0,86 Unit Price incl. VAT
16
Hex socket screw M6x20
AP8150044
$3,65 Unit Price incl. VAT
17
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
18
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
19
Hose clamp
GU06609600
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
